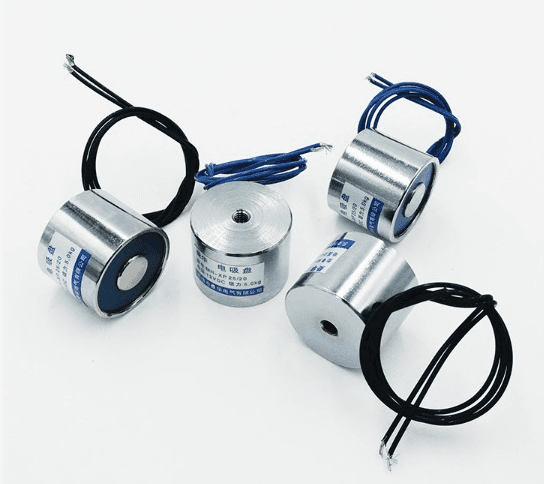

12V Electromagnet · imagen 1
Robotics

12V Electromagnet

sku ROB-CB0267 · categoríacategory robotics

$8.95+iva+VAT
precio en USD
factura o tiquete electrónico
price in USD
electronic invoice or receipt

en stockin stock — envíos desde San José— ships from San José

cantidadquantity

antes de comprarbefore you buy
  • [✓] Envío desde San José, CR: por Correos de Costa Rica, o retiro en Centro Colón. Costo y plazo en el checkout.Ships from San José, CR: by Correos de Costa Rica, or pickup at Centro Colón. Cost and timing at checkout.
  • [✓] Envío gratis con Correos en pedidos desde $200.00 antes de IVA.Free shipping by Correos on orders of $200.00 or more before VAT.
  • [✓] Factura electrónica: pídala en el checkout con su cédula o la de su empresa.Electronic invoice: ask for it at checkout with your ID or your company's.
  • [✓] PagoPayment: Tarjeta de crédito o débito (Tilopay)Credit or debit card (Tilopay) · Compra-Click (enlace de pago por correo)Compra-Click (payment link by email) · Pagar al retirar en Centro Colón (datáfono)Pay at pickup in Centro Colón (card terminal) · SINPE MóvilSINPE Móvil · Depósito o transferencia bancariaBank deposit or transfer.
  • [✓] CuentaAccount: para comprar se inicia sesión.needed to check out. Crear cuentaCreate an account
  • [✓] ¿Dudas?Questions? contacto y soportecontact and support
specs

$ cat specs.txt

alimentaciónpower supply
12VDC@330mA12VDC@330mA
modelomodel
ZYE1-P25/ 20ZYE1-P25/ 20
fuerza de sujeciónholding force
11 lbs/ 5kg11 lbs/ 5kg
tamaño de roscathread size
M4M4
diámetrodiameter
aprox. 25 mmapprox. 25 mm
alturaheight
20 mm20 mm
longitud del cablecable length
aprox. 20 cmapprox. 20 cm

a agregar al carritoadd to cart← → fotosphotosg c ir al carritogo to cart

cat README.md

¡Este electroimán es ideal para simular líneas de ensamblaje o agregarlo a un robot!

Alimentación: 12VDC@330mA
Modelo: ZYE1-P25/ 20
Tamaño de rosca: M4
Fuerza de sujeción: 11 lbs/ 5kg (posiblemente con un material perfectamente plano y altamente ferroso)
Diámetro: aprox. 25 mm
Altura: 20 mm
Longitud del cable: aprox. 20 cm

Incluye: 1 x Electroimán



This electromagnet is great for simulating assembly lines or adding to a robot!

Power: 12VDC@330mA
Model: ZYE1-P25/ 20
Thread Size: M4
Holding force: 11 lbs/ 5kg (perhaps with a perfectly flat highly ferrous material)
Diameter: approx. 25 mm
Height: 20 mm
Cable length: approx. 20 cm

Included: 1 x Electromagnet
