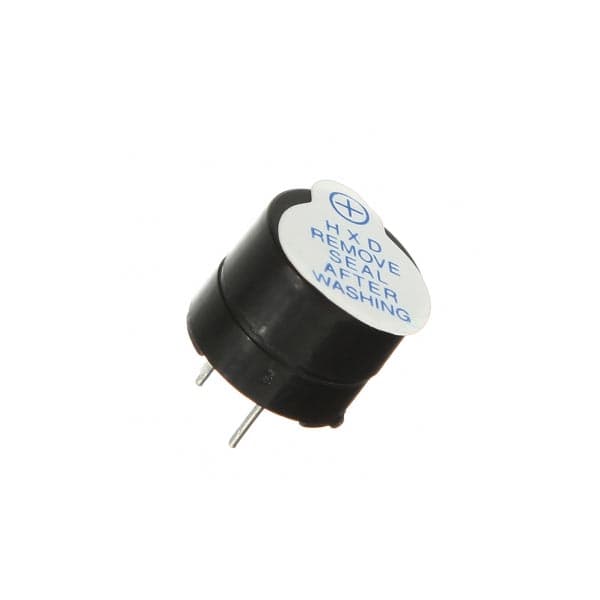

Active Buzzer PC Mount · imagen 1
Components

Active Buzzer PC Mount

sku SEN-CB0288 · categoríacategory components

$0.95+iva+VAT
precio en USD
factura o tiquete electrónico
price in USD
electronic invoice or receipt

en stockin stock — envíos desde San José— ships from San José

cantidadquantity

antes de comprarbefore you buy
  • [✓] Envío desde San José, CR: por Correos de Costa Rica, o retiro en Centro Colón. Costo y plazo en el checkout.Ships from San José, CR: by Correos de Costa Rica, or pickup at Centro Colón. Cost and timing at checkout.
  • [✓] Envío gratis con Correos en pedidos desde $200.00 antes de IVA.Free shipping by Correos on orders of $200.00 or more before VAT.
  • [✓] Factura electrónica: pídala en el checkout con su cédula o la de su empresa.Electronic invoice: ask for it at checkout with your ID or your company's.
  • [✓] PagoPayment: Tarjeta de crédito o débito (Tilopay)Credit or debit card (Tilopay) · Compra-Click (enlace de pago por correo)Compra-Click (payment link by email) · Pagar al retirar en Centro Colón (datáfono)Pay at pickup in Centro Colón (card terminal) · SINPE MóvilSINPE Móvil · Depósito o transferencia bancariaBank deposit or transfer.
  • [✓] CuentaAccount: para comprar se inicia sesión.needed to check out. Crear cuentaCreate an account
  • [✓] ¿Dudas?Questions? contacto y soportecontact and support
specs

$ cat specs.txt

tipotype
Buzzer activo piezoeléctricoPiezoelectric active buzzer
frecuencia de resonanciaresonant frequency
2300±300 Hz2300±300 Hz
voltaje nominalrated voltage
5V5V
voltaje de operaciónoperating voltage
3.3-8V3.3-8V
corriente nominal (máx.)rated current (max.)
30 mA30 mA
salida de sonido mínima a 10cmminimum sound output at 10cm
85 dB85 dB
tamañosize
9 x 11.8 mm (L x D)9 x 11.8 mm (L x D)
materialmaterial
ABSABS
colorcolor
NegroBlack
temperatura de operaciónoperating temperature
-27 a +70 °C-27 to +70 °C
temperatura de almacenamientostorage temperature
-30 a +105 °C-30 to +105 °C

a agregar al carritoadd to cart← → fotosphotosg c ir al carritogo to cart

cat README.md

 Este es un buzzer ACTIVO para montaje en PC. Al activarse, este buzzer piezoeléctrico emite una alarma de 2.3kHz. Si desea reproducir melodías y hacer música, necesitará un buzzer PASIVO.

Especificaciones

  • Material: ABS
  • Color: Negro
  • Tamaño: 9 x 11.8 mm (L x D) / 0.35 x 0.46 pulgadas
  • Voltaje nominal: 5V
  • Voltaje de operación: 3.3-8V
  • Corriente nominal (MÁX): 30 mA
  • Salida de sonido mínima a 10cm: 85 dB
  • Frecuencia de resonancia: 2300±300 Hz
  • Temperatura de operación: -27 a +70 °C
  • Temperatura de almacenamiento: -30 a +105 °C


 This is an ACTIVE PC mount buzzer. When activated this piezoelectric buzzer emits a 2.3kHz alarm. If you would like to play tunes and make music you will need a PASSIVE Buzzer.

Specifications

  • Material: ABS
  • Color: Black
  • Size: 9 x 11.8 mm (L x D) / 0.35 x 0.46 inch
  • Rated voltage: 5V
  • Operating voltage: 3.3-8V
  • Rated current (MAX): 30 mA
  • Min sound output at 10cm: 85 dB
  • Resonant frequency: 2300±300 Hz
  • Operating temperature: -27 to +70 °C
  • Storage temperature: -30 to +105 °C
