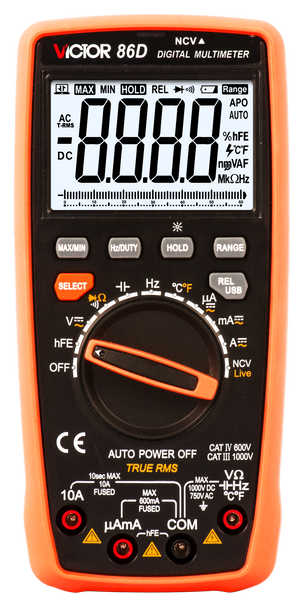

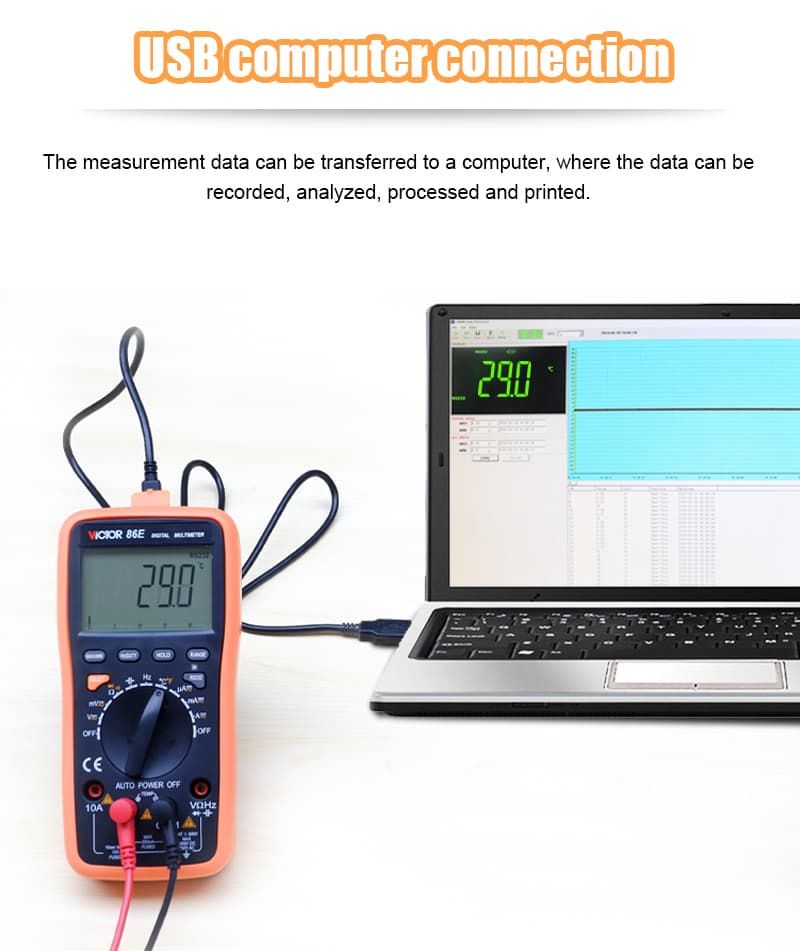

It seems like everything plugs in to your computer these days, and this digital multimeter is no exception. This auto-ranging multimeter will test AC and DC voltage and current as well as capacitance, resistance, frequency and even temperature. It features a large, easily readable display for use in the field as well as the ability to connect to your computer for data logging, processing and analysis. It has all of the basic functions that you expect from a good digital multimeter including continuity check (with buzzer), diode test and data hold. Data logging and analysis software is included on a mini-CD and you can also download it below.

Note: This meter does have a USB interface, but it’s not clearly RS232. The meter needs the proprietary software to function and you cannot simply read the data directly without a driver and the software.

Features

• Auto-Ranging, Auto-Power off
• True RMS,
• Shockproof Protection
• Input Impedance: 10MΩ
• Relative Value Measurement(REL)
• Data Hold

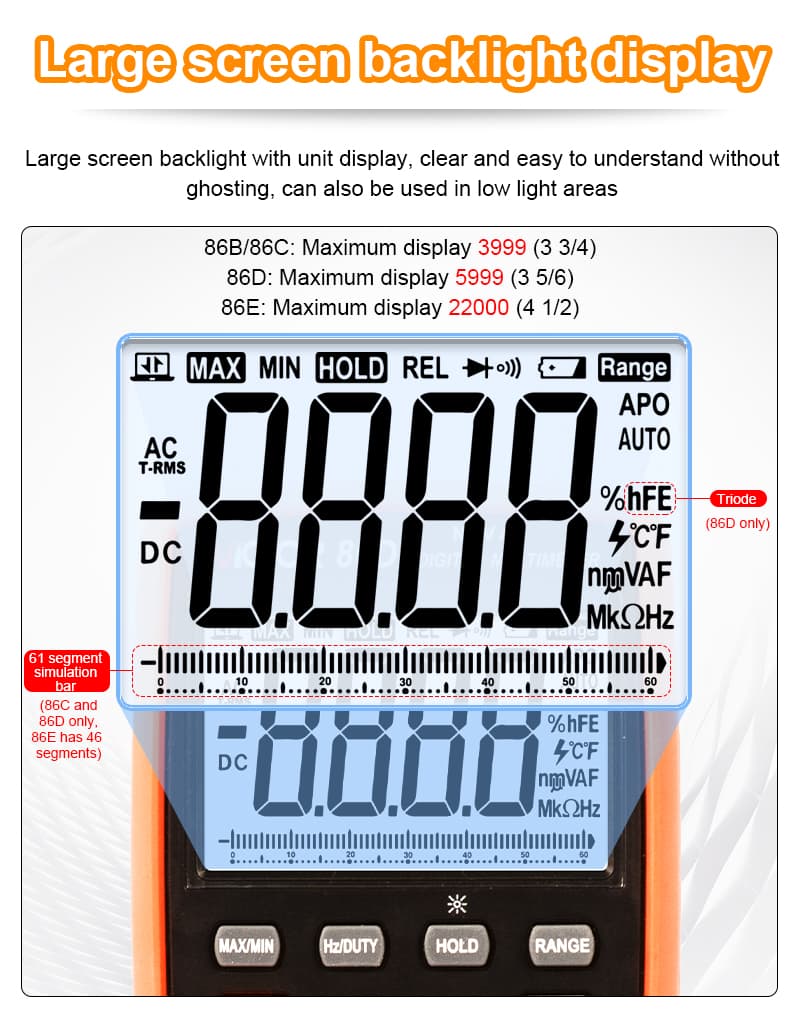

• 70×50mm LCD Display with 3 5/6 digits
• The instrument adopts the directly driven 4 digits microprocessor and dual-integral A/D converter, which provide the high
• AC Frequency response: 40-400 Hz
• DC Voltage Ranges: 600mV/6V/60V/600V/1000V ±(0.5%+4)
• AC Voltage Ranges: 6V/60V/600V/750V ±(0.8%+10)
• DC Current Ranges: 600uA/6000uA /60mA/600mA/6A/10A ±(1.5%+10)
• AC Current Ranges: 600uA/6000uA /60mA/600mA/6A/10A ±(1.5%+10)
• Resistance Ranges: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+4)
• Capacitance Ranges: 40nF/400nF/4uF/40uF/200uF ±(3.5%+8)
• Frequency Ranges: 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz ±(0.5%+15)
• Temperature: (-20 ~ 1000) ℃ /(0~1832) ℉
• Continuity, Diode and transistor tester.
• Max/Min and Function protection
• Sampling Rate: 3 times/s
• Input Fuse protection

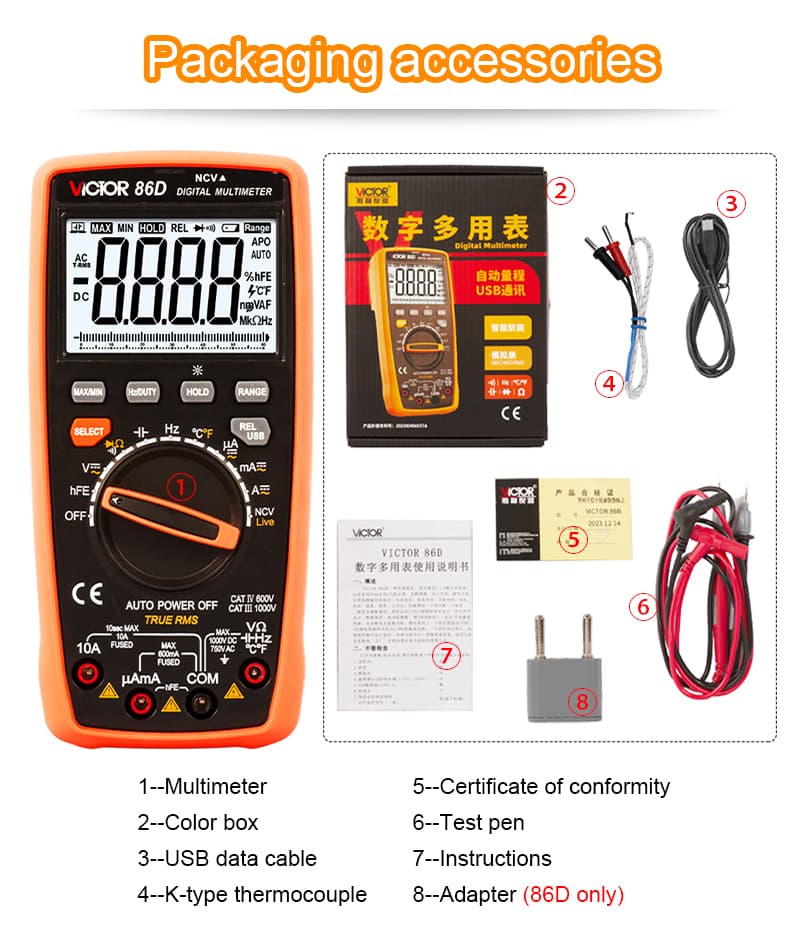

Includes

• Test Leads
• Isolated alligator clips
• Temperature Probe
• USB type-C cable
• Transistor and Temperature probe adapter
• 4xAAA batteries
• User Manual(Chinese)

Documents

• Datasheet
• Software
• Driver
• How to Use a Multimeter
