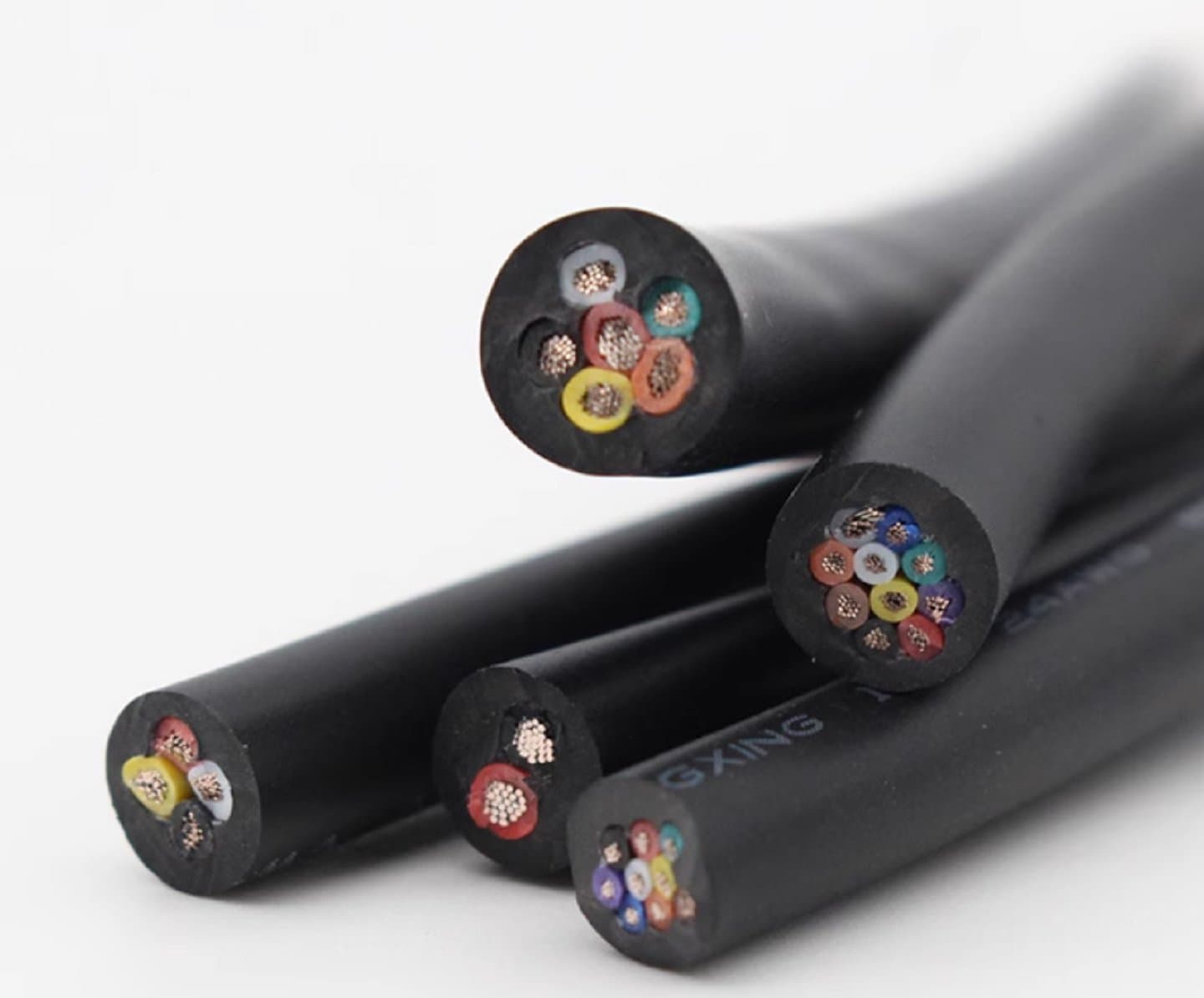

The 26AWG UL2464 cable is a common 26 AWG electrical cable with UL2464 certification. It is used in electronic applications due to its flexibility and ability to carry low to medium-power electrical signals. It comes with multiple individually insulated conductors and a common protective jacket, making it ideal for internal connections in electronic devices, communication systems, and control equipment.

Specifications

• Style: UL2464
• Conductor gauge: 26AWG
• Material: Tinned Stranded Copper
• Conductor Structure: TS7/0.16±0.007mm
• Average insulation thickness 0.24mm
• Insulation material: PCC

Documents:

• 2 Cores datasheet
• 3 Cores datasheet
• 4 Cores datasheet
