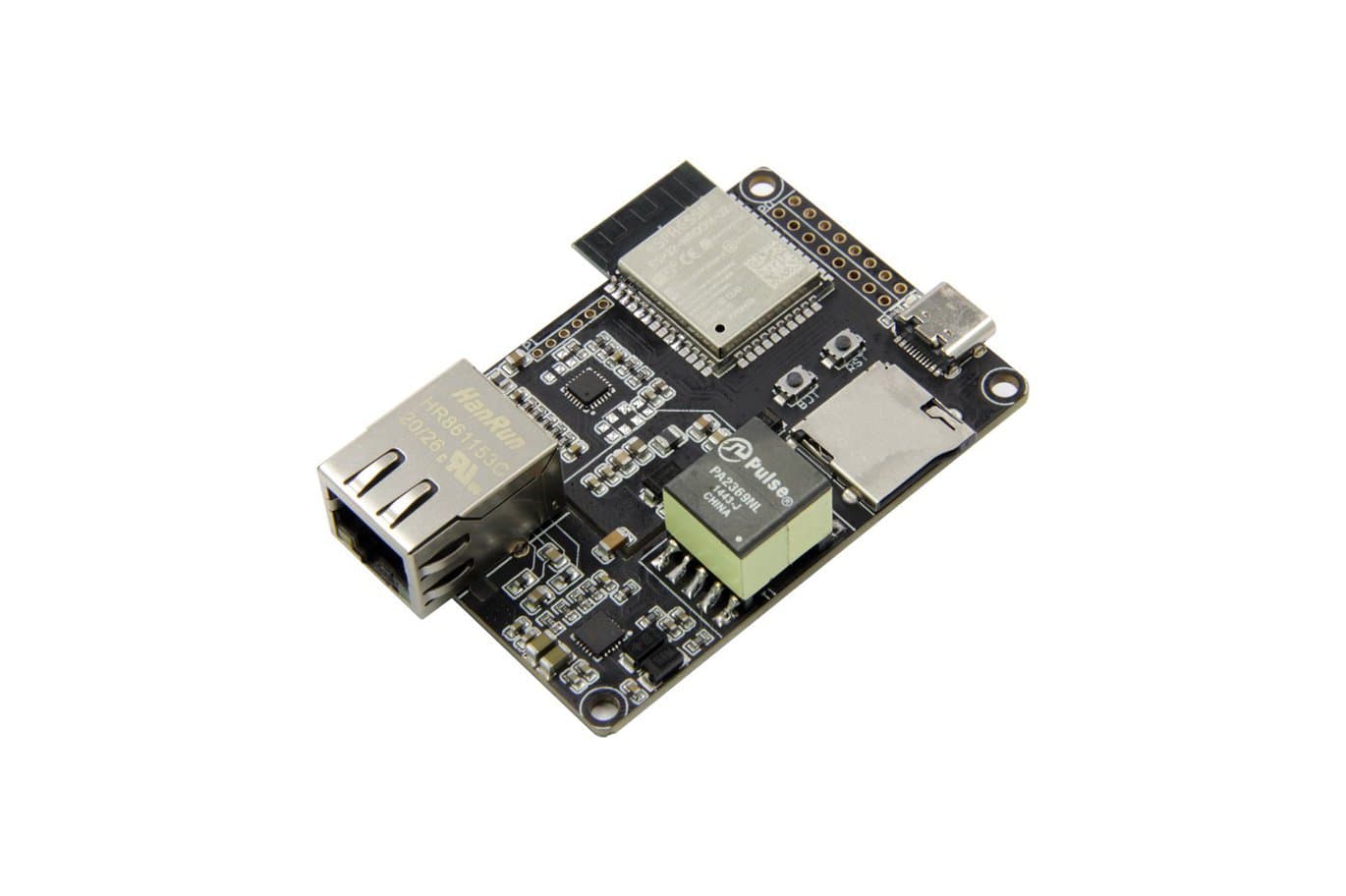

- TTGO T-Internet-POE ESP32-WROOM LAN8720A Chip Ethernet Adapter And Downloader Board
Product Description
Create reliable wired IoT projects using Power Over Ethernet and the ESP32!

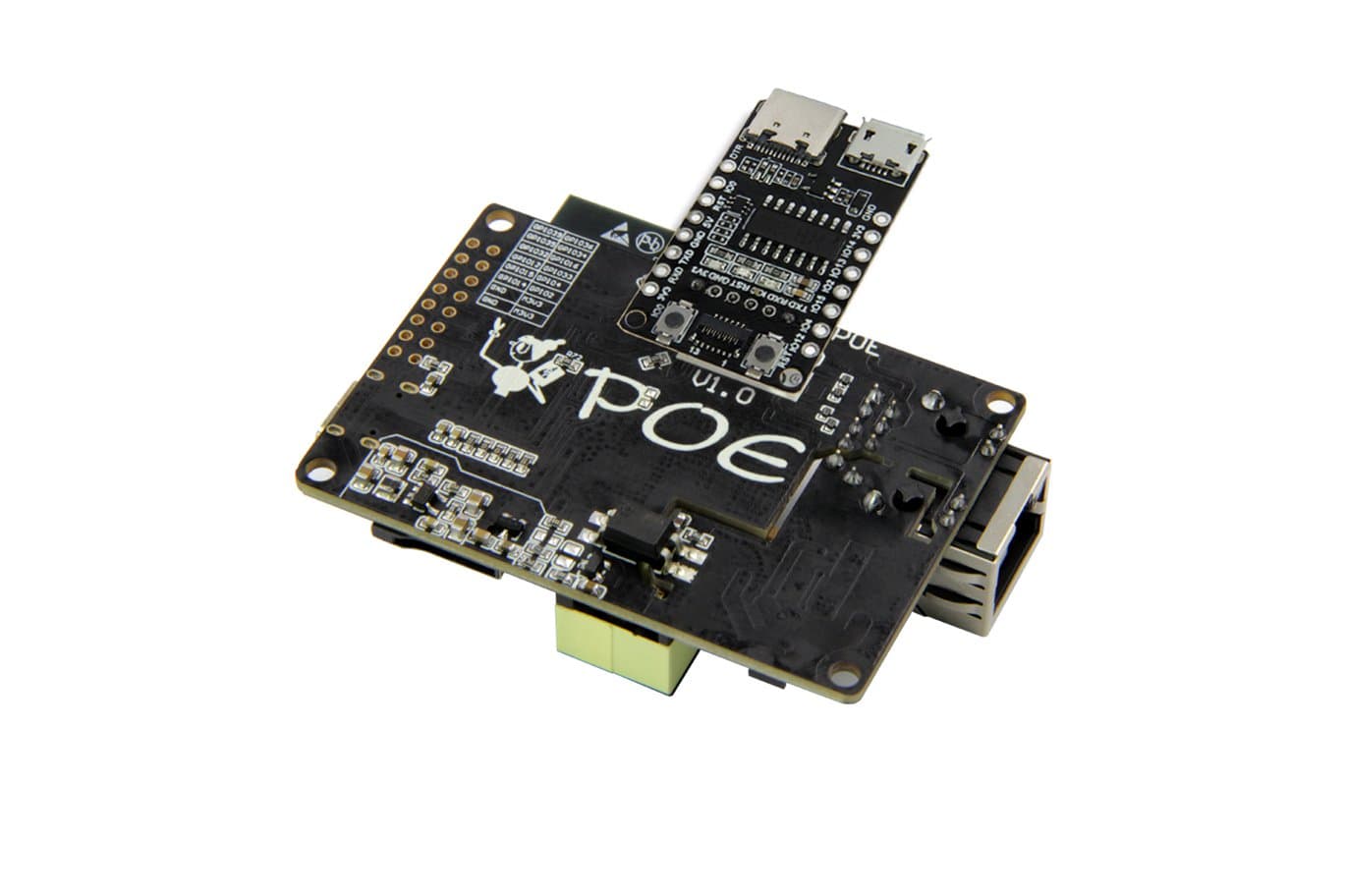

Includes the main board AND the required programmer board
Sample code from Andres Spiess
Features:
- Chipset:ESPRESSIF-ESP32-WROOM,LAN8720A Ethernet chip,SI3404 Power management chip
- FLASH:4MB
- SRAM:520kB SRAM
- Button:BOT,Rest
- External Device:TF Card Slot,Type-C Interface,PA2369NL 1825-S Transformer,HR861153C Ethernet-POE interface
- USB to TTL:CP2104
- Modular interface:SD card、UART、SPI、I2C、PWM、I2S、ADC
- On-board clock:32.768MHz crystal oscillator
- Working temperature range:-40℃ ~ +85℃
- Weight:26.85g
- Size:70 X 52.3 X 17mm
- USB Type-C for power and programming (power not needed if using POE)
As seen on Andreas Spiess' Youtube channel!
