Be able to display measured temperature/humidity and stablish setpoints for controlling environment conditions. Heating/Cooling & Humidify/Dehumidify functions could be set separately.

Supporting Temp and Humidity Calibration.

Applications: Bird incubators, Fridge Units and Greenhouses.

Specifications:

• Power supply: 110-220VAC ± 10%, 50/60Hz
• Measurement temperature range: -20 ° C ~ +80 ° C
• Measuring humidity range: 00%RH～+100%RH
• Accuracy: ±1°C 0.1%RH
• Relay output contact capacity: 10A/240VAC,
• Integrated sensor, line length 1 meter
• Shell material: gray ABS flame retardant plastic shell

User manual: STC-3028

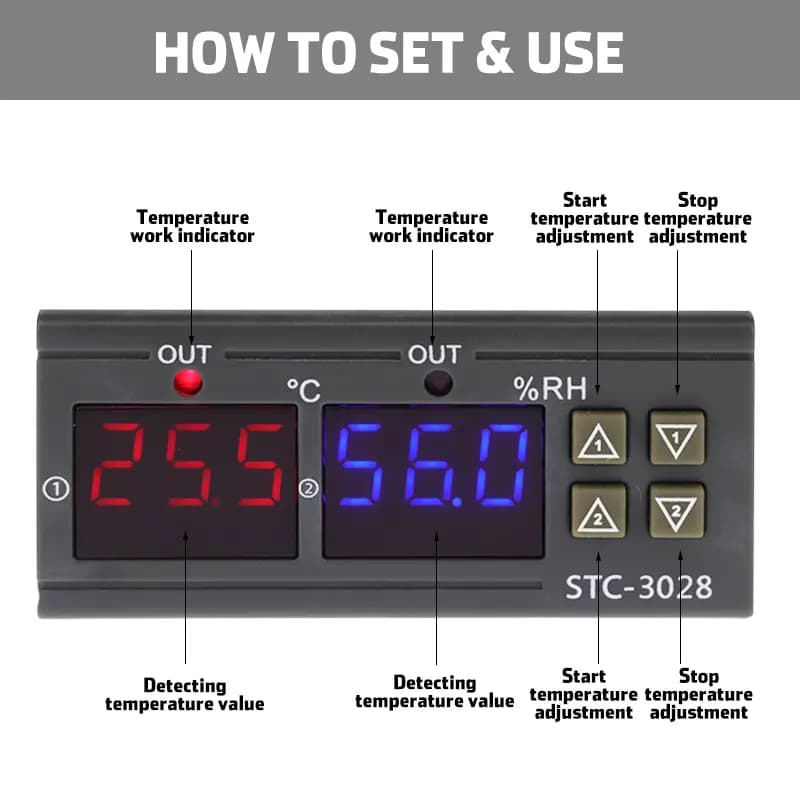

Temperature Control(Buttons marked with number 1)

Heater:

Start->Long press "up" button until the number flashes and adjust your lower setpoint (Default 20°C)

Stop->Long press "down" button until the number flashes and adjust your upper setpoint (Default 30°C)

Cooler:

Start->Long press "up" button until the number flashes and adjust your upper setpoint

Stop->Long press "down" button until the number flashes and adjust your lower setpoint

Humidity Control(Buttons marked with number 2)

Humidifier:

Start->Long press "up" button until the number flashes and adjust your lower setpoint (Default 40%)

Stop->Long press "down" button until the number flashes and adjust your upper setpoint (Default 60%)

Dehumidifier:

Start->Long press "up" button until the number flashes and adjust your upper setpoint

Stop->Long press "down" button until the number flashes and adjust your lower setpoint
