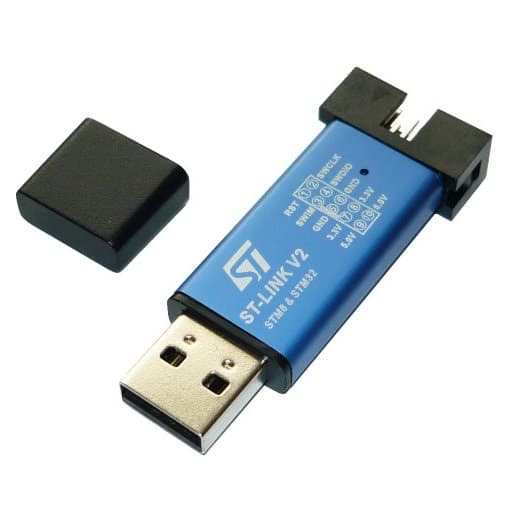

ST-Link/V2 mini is a small form factor programmer and in-circuit debugger for STM8 and STM32. This mini STM programmer is a low cost alternative, supports all STM32 SWD interface debugging and SWIM debugging for STM8 or STM32 series controllers. It can provide power to target 5V and 3.3V output.

Features

• PCB installed inside of aluminum alloy shell, portable, safe and reliable
• Interface definition printed on the shell, clear, convenient and practical
• 5V, 3.3V offers in the same time, allowing you to program your target board with both 5V and 3.3V
• 500mA internal resettable fuse, adds protection to computer USB port
• Red and blue color LED indicator, allowing you to always observe ST-LINK V2 status

Technical Specifications

• Case Color: Color may vary
• Supported Device Series:
  • STM8 Series Microcontrollers
  • STM32 Series Microcontrollers
• Supported Interfaces:
  • JTAG/serial wire debugging (SWD)
  • Single wire interface module (SWIM)
• Supported Development Environments:
  • ST-LINK Utility 2.0 and above
  • STVD 4.2.1 and above
  • STVP 3.2.3 and above
  • IAR EWARM V6.20 and above
  • IAR EWSTM8 V1.30 and above
  • KEIL RVMDK V4.21 and above

Documents and Downloads

• ST-LINK V2 Driver Download for Windows

• How to Set up the ST-Link v2 Programmer Tutorial for ARM Microcontrollers

 Package Includes

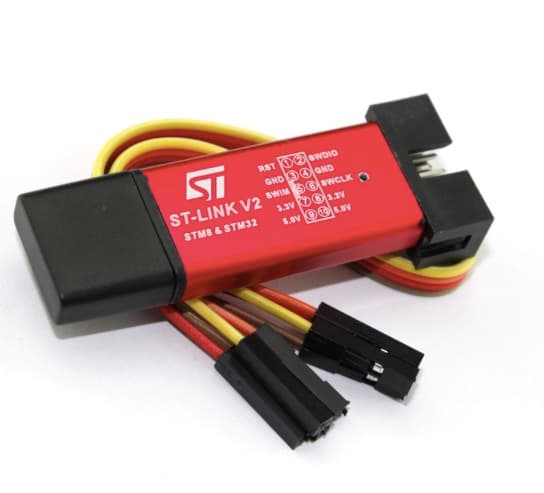

• 1x ST-Link V2 Mini Programmer Debugger With Metallic Case
• 4x Female to Female Dupont cables
