The Raspberry Pi 5 case is a refinement of the Raspberry Pi 4 case. With improved thermal features to support the higher peak power consumption of Raspberry Pi 5, it integrates a variable-speed fan. The fan is powered and controlled from a dedicated connector on the Raspberry Pi 5 PCB.

The case is Black and Grey in color.

Specifications

• Axial fan spec:
  • 30mm × 30mm × 7.5mm dimensions
  • Four wires: power, ground, PWM, and tachometer
  • The fan is quiet with an FDB bearing for low noise and increased longevity (50k hours)
  • Max fan speed is 8000RPM
  • Max airflow is approx 2.79CFM
• Case spec:
  • A four-part ABS plastic enclosure that easily clips together

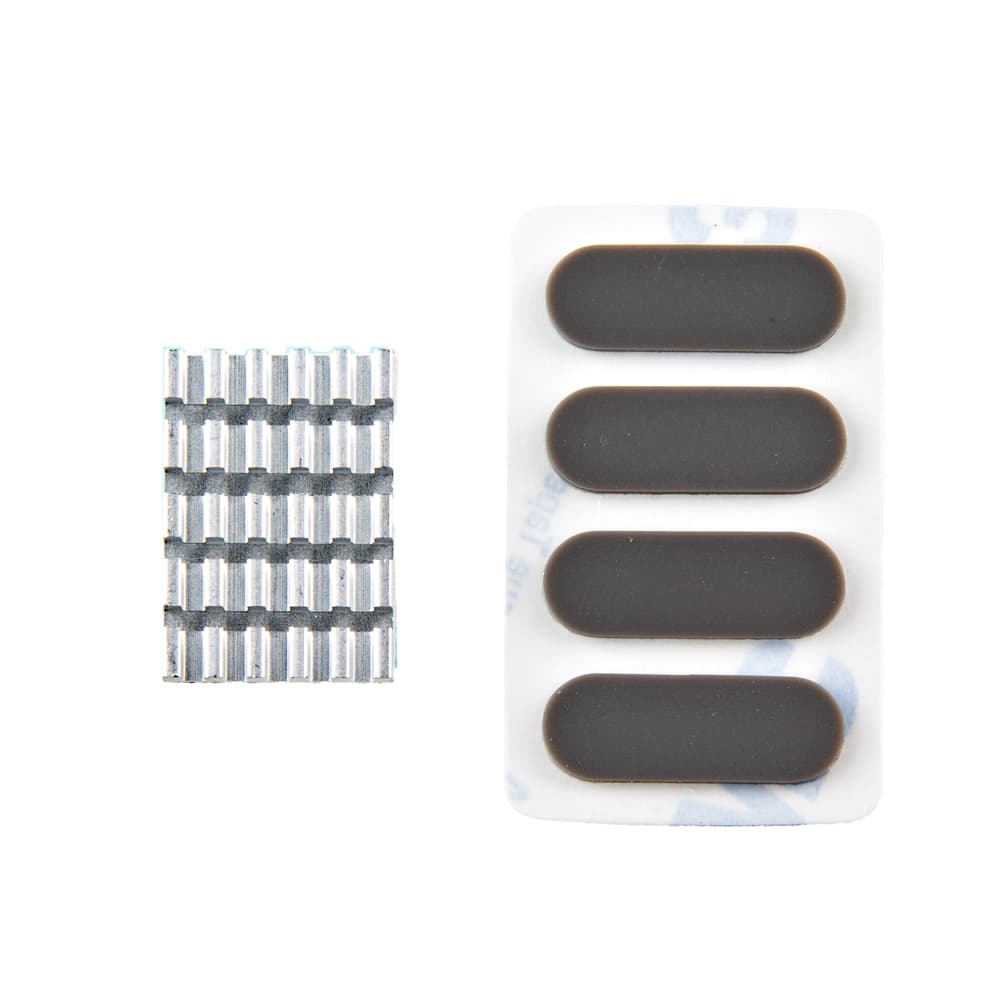

  • An accessories envelope included in the box contains a dedicated Pi 5 heatsink to stick on the CPU, plus four silicone feet on a strip
