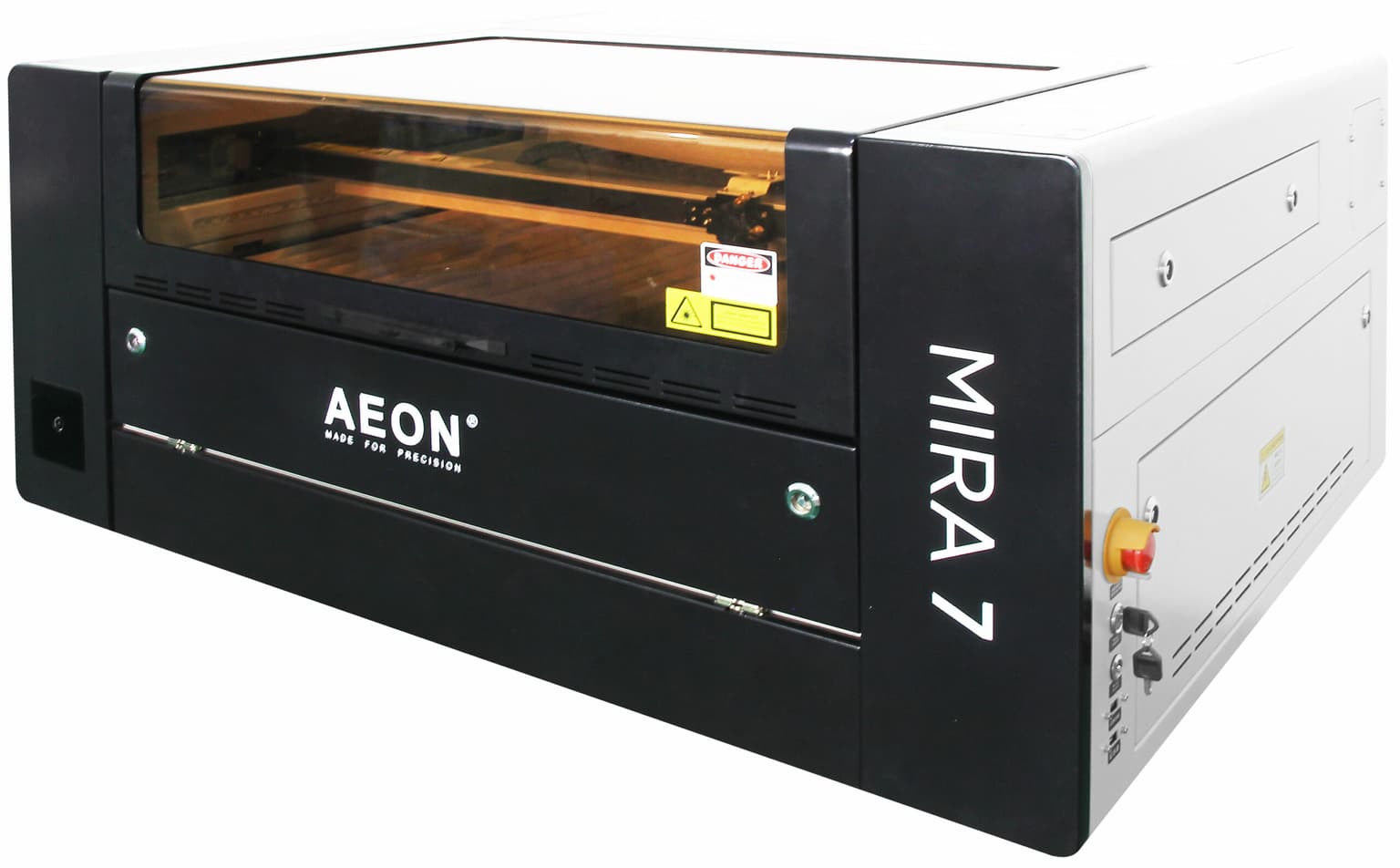

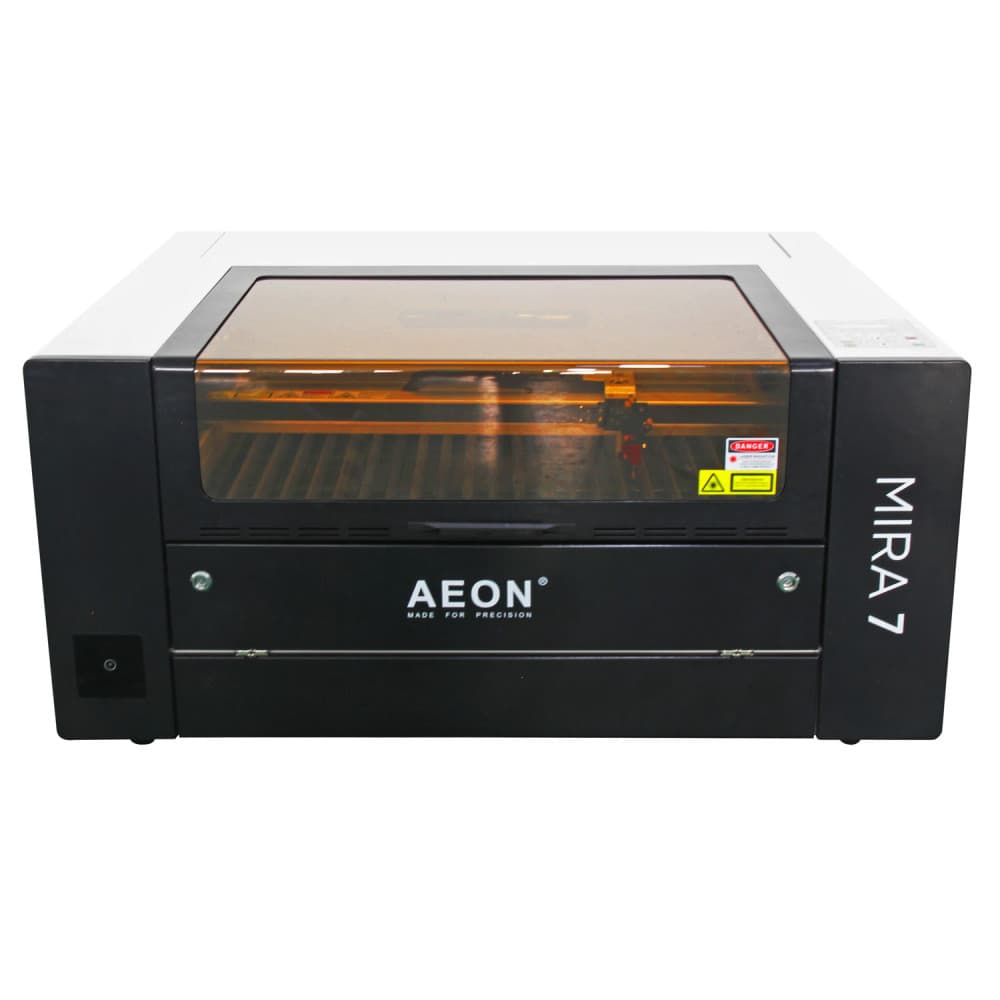

The AEON MIRA7 is a professional desktop laser engraving machine. It features a 700 × 450 mm working area and integrates a water cooling system, exhaust fan, and air pump within its structure, resulting in a compact, clean, and modern design.

In this model, the water cooler's condenser has been enlarged, significantly enhancing its cooling efficiency. As a professional-grade machine, it includes both a blade-cutting table and a honeycomb table. Additionally, the built-in air assist and exhaust blower are more powerful. The entire machine is designed in compliance with Class 1 Laser safety standards, featuring a fully enclosed casing. Every door and window is equipped with locks, and the main switch includes a key lock to prevent unauthorized access.

As part of the MIRA Series, the MIRA7 achieves engraving speeds of up to 1200 mm/s with an acceleration of 5G. Its dust-proof guide rail ensures consistently precise engraving results. Furthermore, the red beam is of the combiner type, aligning with the laser path. For an even more user-friendly experience, optional autofocus and Wi-Fi connectivity are available.

Overall, the MIRA7 is a high-performance desktop machine that meets the demands for speed, power, and durability. Its robust construction and advanced safety features make it a highly efficient tool for your business.

Specifications:

• Model: MIRA7
• Laser Type: Hermetic CO2 laser tube
• Laser Tube: 40W/60W/75W or RF metal 30W
• Controller: RD6442S for AEON
• Worktable: Honeycomb&blade
• Workspace: 700mm*450mm*150mm
• Laser PSU: MYJG-40W/60W/80W
• Cutting Speed: 0 ~ 800 mm/s 5G accelerations
• Engraving Speed: 0 ~ 1200 mm/s 5G accelerations
• Height Clearance: 0~154mm
• Repeatability: ±0.01mm
• Scan Accuracy: 4000DPI
• File Formats Vectors: PLT, DXF, AI, CAD, CDR
• Chiller/blower/air assist: All Built-in
• Lens: φ18mm, F=50.8mm, 63.5mm
• Mirrors: φ 20mm
• Compatible Softwares: RDWorks V8.01 or LightBurn
• Wifi&autofocus: Available
• Machine Dimension: 1106*883*543mm
• Gross Weight: 195KG
• Power Input: 110V 60Hz, 220V 50Hz~60Hz

Advantages of the MIRA7

• Faster than others: With a Customized stepper motor, high-quality Taiwan Linear Guide rail, and Japanese bearing, the MIRA7 maximum engraving speed is up to 1200mm/sec, acceleration speed up to 5G, twice or three times faster than ordinary machines on the market.
• Clean pack Technology: One of the biggest enemies of laser engraving and cutting machines is dust. Smoke and dirty particles will slow down the laser machine and make the outcome bad. The Clean pack design of MIRA protects the linear guide rail from dust, reduces maintenance frequency effectively, gets a much better outcome.

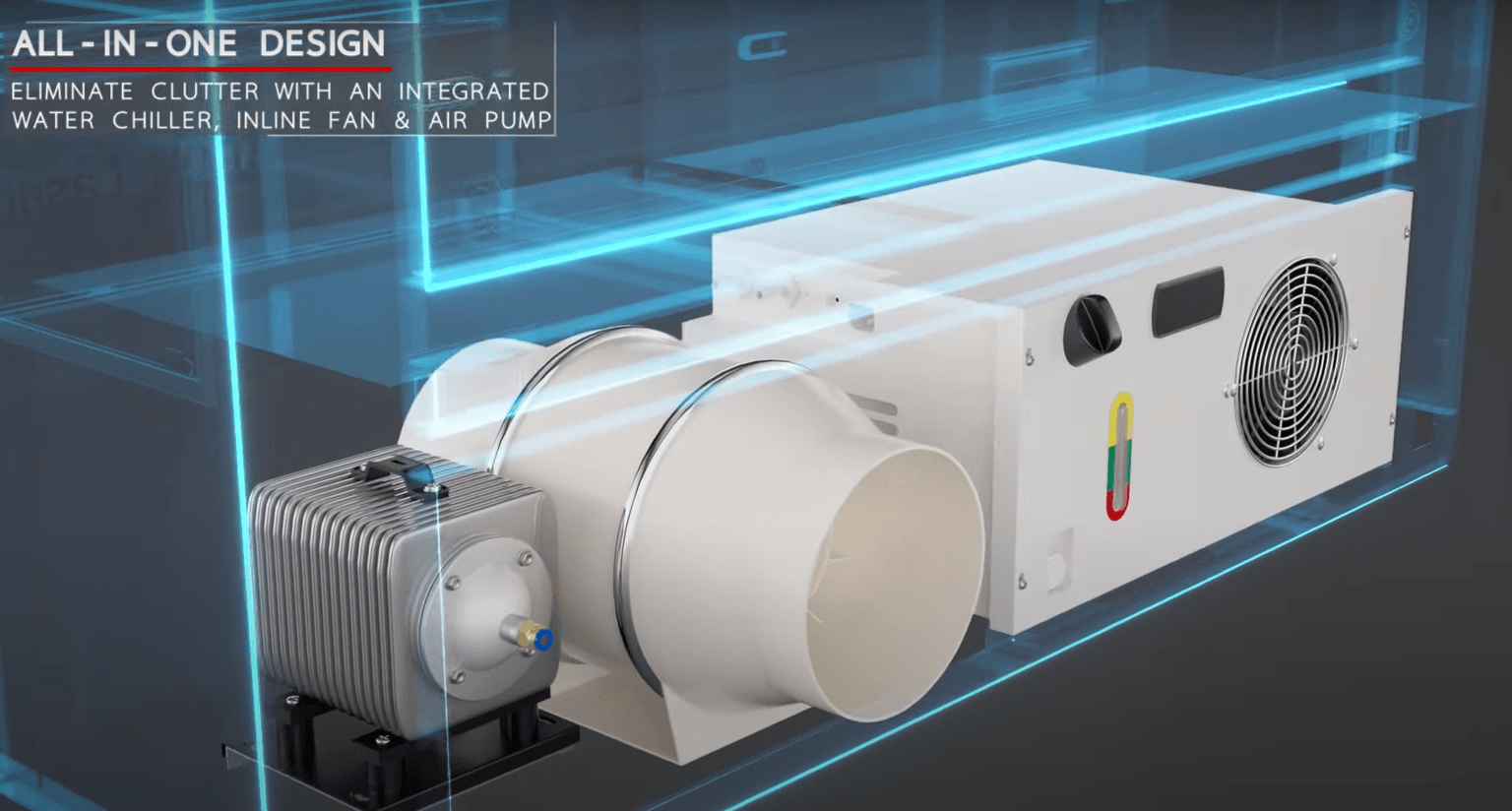

• All-in-one design: All of the laser machines need an exhaust fan, cooling system, and air compressor. The MIRA7 has all these functions built-in, is very compact, and is clean. just put it on the table, plugin, and play. Friendly for starters and save much room.
• Class 1 Laser Standard: The MIRA7 machine case is fully enclosed. There are key locks on every door and window. The main power switch is key lock type, which prevents the machine from those unauthorized persons operating the machine. These features make it much safer.
• AEON Pro-Smart Software: The Aeon ProSmart software is user friendly and it has perfect operation functions. You can set parameter details and operate it very easy. It will support all file formats as using on market and can direct work inside of CorelDraw, Illustrator and AutoCAD. And further, it is compatible with both windows and Mac OS!
• Multi-Communication: The MIRA7 was build with high-speed multi communication system. You can connect to your machine by Wi-Fi, USB cable, LAN network cable and transfer your data by USB Flash disk. Machine has 128 MB memory, LCD screen control panel. With off-line working mode when your electricity down and reboot machine will run on stop position.
• Effective Table and front pass through door: The MIRA 7 got a ball screw electric up & down table, steady and precise. Z-Axis height is 150mm, can fit in 150mm height products. The front door can be opened and fit longer materials through the door.
• Focus easier: The MIRA 7 Laser can install the newly designed Autofocus. The focus for the laser can’t be easier. Just press the autofocus on the control panel, it will find its focus automatically. The autofocus device height can be adjustable manually very easily, and it can be installed and replaced very easily, too.
• Strong and Modern body: The Case is made up of a very thick galvanized steel plate, which is very strong. The painting is powder type, looks much better. The design is much more modern, which fits seamlessly in a modern house. The LED illumination inside the machine makes it shinning in the darkroom like a superstar.
• Integrated air filter: The environmental problems for laser machines are more and more attracted attention by customers. In the process of engraving and cutting, the laser will bring heavy smoke and dust. That smoke is very harmful. Although it can be driven out of the window by the exhaust pipe, it did harm the environment badly. With our integrated air filter specially designed for the MIRA series, it can remove 99.9% of the smoke and bad smells made by laser machine, and it can be a support table for the laser machine as well, further, you could put material or other finished products on the closet or drawer.
