AEON MIRA5 Desktop Laser Engraver Cutter is a hobby grade desktop laser engraving machine. The working area is 500 x 300mm, with water cooler, exhaust fan and air pump built inside of the machine which is very compact and elegant. It is ideal for those who got limited space and want a best hobby grade desktop laser engraving machine in his/her room.

It is designed more focused on engraving than cutting, therefore, there is no blade cutting table for this model. But that does not mean you could not cut at all. You could cut plywood, MDF, leather, and paper with this machine very well. Only when cutting the acrylic or other plastic materials, better to put some solid flat objects underneath to make the acrylic not in contact with the honeycomb table so that it won’t burn the bottom of the acrylic.

 The MIRA5 laser engraver cutter might be the most powerful hobby machine you could find on the market. The engraving speed is very fast, up to 1200mm/sec. The acceleration speed is 5G. Also, the dust-proof guide rail ensures the engraving outcome is perfect. The red beam is the combiner type, which is the same as the laser path. Further, you could choose autofocus and WIFI to get an easier operation experience.

Specifications:

• Model: MIRA5
• Laser Type: Hermetic CO2 laser tube
• Laser Tube: 40W/60W(depend on client selection)
• Controller: RD6442S for AEON
• Worktable: Honeycomb&blade
• Workspace 500x300x120mm
• Cutting Speed: 0 ~ 800 mm/s 5G accelerations
• Engraving Speed: 0 ~ 1200 mm/s 5G accelerations
• Height Clearance: 0~154mm
• Repeatability: ±0.01mm
• Scan Accuracy: 4000DPI
• File Formats: Vectors PLT, DXF, AI, CAD, CDR
• Chiller/blower/air assist: All Built-in
• Lens: φ18mm, F=50.8mm, 63.5mm
• Mirrors: φ 20mm
• Softwares: RDWorks V8.01 or LightBurn
• Wifi&autofocus: Available
• Machine Dimension: 900*712*413
• Gross Weight 115KG
• Power Input 110V 60Hz, 220V 50Hz~60Hz

Advantages of the MIRA5 Laser Engraver Cutter

• Faster than others: With a Customized stepper motor, high-quality Taiwan Linear Guide rail, and Japanese bearing, the MIRA5 maximum engraving speed is up to 1200mm/sec, acceleration speed up to 5G, twice or three times faster than ordinary machines on the market.
  Clean pack Technology: One of the biggest enemies of laser engraving and cutting machines is dust. Smoke and dirty particles will slow down the laser machine and make the outcome bad. The Clean pack design of MIRA protects the linear guide rail from dust, reduces maintenance frequency effectively, gets a much better outcome.

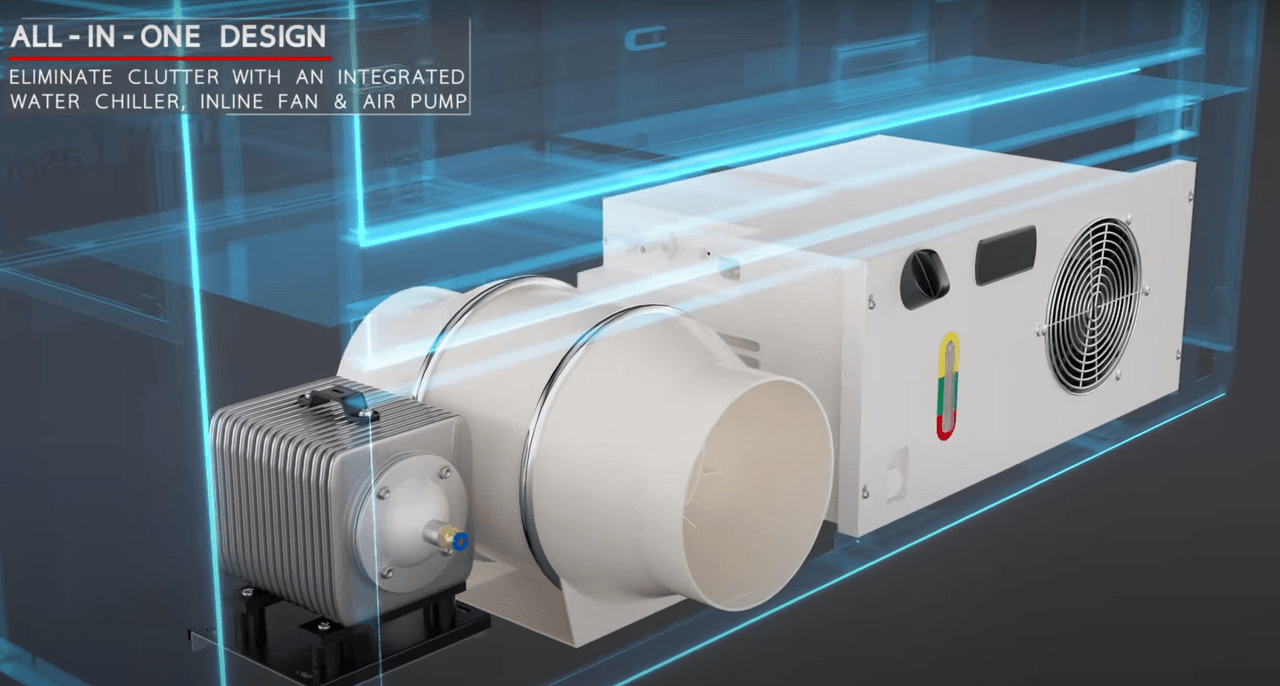

• All-in-one design: All of the laser machines need an exhaust fan, cooling system, and air compressor. The AEON MIRA5 has all these functions built-in, very compact and clean. just put it on the table, plugin and play.
• Software: With RDWorks software, you can easily create simple designs. For a more advanced user experience, upgrade to LightBurn. If you have experience in graphic design, you can import graphics directly from CorelDraw, AutoCAD, and Illustrator using the convenient plugins.

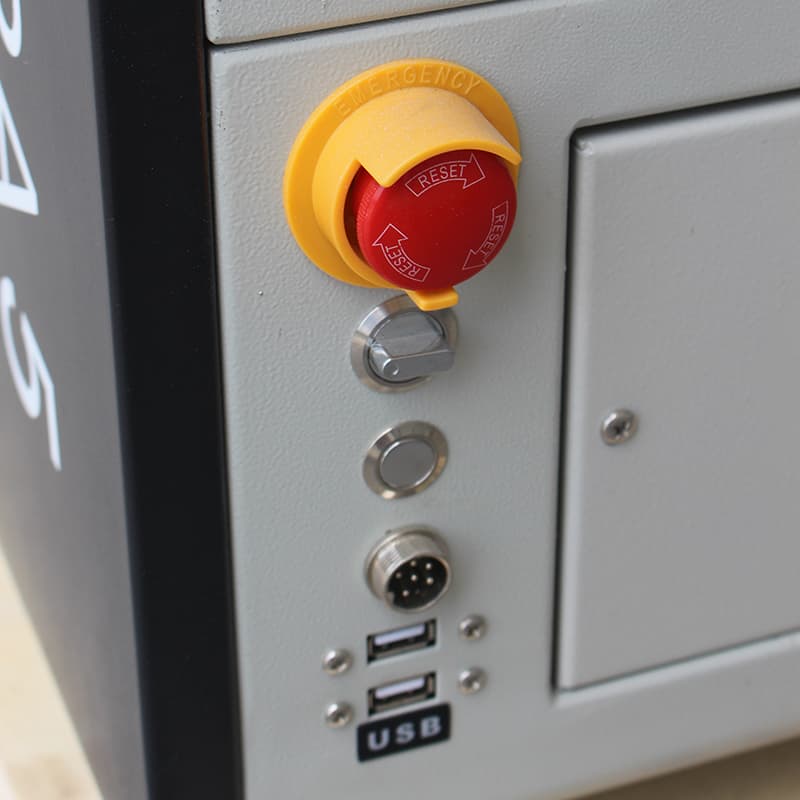

• Multi-Communication: The MIRA5 was built with a high-speed multi-communication system. You can connect to your machine by Wi-Fi, USB cable, LAN network cable, and transfer your data by USB Flash disk. The machine has 128 MB memory, LCD screen control panel. With off-line working mode when your electricity down and reboot machine will run on stop position.
• Effective Table and front pass through door: The MIRA5 got a ball screw electric up & down the table, steady and precision. Z-Axis height is 120mm, the front door can be opened and fit longer materials through the door
• Focus easier: The MIRA5 can install the newly designed Autofocus. The focus for the laser can’t be easier. Just a press with the autofocus on the control panel will find its focus automatically. The autofocus device height can be adjustable manually very easily, and it can be installed and replaced very easily, too.
• Strong and Modern body: The Case is made up of a very thick galvanized steel plate, which is very strong. The painting is powder-type and looks much better. The design is much more modern, which fits seamlessly in a modern house. The LED illumination inside the machine makes it shinning in the darkroom like a superstar.
