The mini CNC router/engraver kit is suitable for milling non-metal materials such as copper PCBs, plastic, acrylic and wood. The most common use for this CNC is to make prototype PCBs.

The controller is an open source ATMEGA328 board running Grbl. Grbl is a free, open source, high performance software for controlling the motion of machines that move, that make things, or that make things move, and will run on a straight Arduino. If the maker movement was an industry, Grbl would be the industry standard.

More information regarding the Grbl motion control software can be found here.

Please note that assembly and operation of this CNC is not a beginner project. Although this machine is small, the user will have to learn all the concepts of large CNC machines in order to make this system work.

ASSEMBLY INSTRUCTIONS

This CNC machine is great to:

• Learn the concepts of CNC before investing in a full size carving or engraving machine
• Create PCB prototypes
• Experiment with different software applications and tool chains
• Build your own CNC without having to find all the individual parts

Specifications:

• Total Dimensions: 330 x 240 x 400 mm
• Engraving area: 300 x 180 x 40 mm
• Stepping Motor: 2 x 42 stepper motors: 1.3A, 0.25N.m

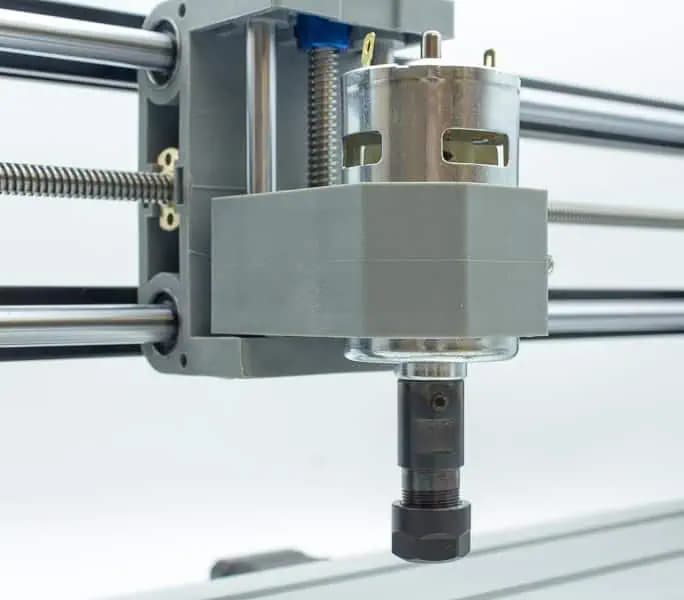

• Spindle: 775 spindle motor (12-36V); 24V: 7000 r/min, 36V: 9000 r/min
• Software: GRBL Control Systems
• Supported system: Windows XP / Win 7 / Win 8 / Win 10 (both 32 bit and 64 bit)
• Screw: professional T8 T-screw, lead 4 mm, double copper nut and poor
• Power Supply: 24V 5.6A power adapter (110-240V input voltage)

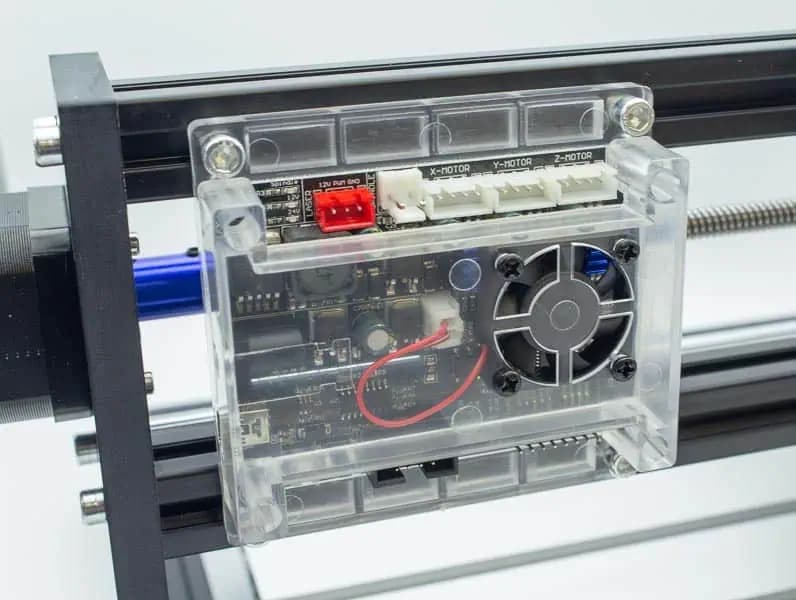

• Controller Board: GRBL Offline XYYZ Axis Bluetooth Control Board, 3 pcs A4988 drives
• Cutters: Diameter 3.175mm, Tip 0.1mm, Length 30mm

Package Includes:

• 1 x set of Mini engraving machine kit with aluminum extrusions and plastic parts
  3 x steppers motors
  1 x Grbl-based motion controller card
  1 x 7000 RPM spindle
  1 x 24VDC power supply
  1 x USB mini cable
  10 x engraving V-bits 20 degree .1mm
  1 x set of hex wrenches for assembly
• 1x USB with drivers

Software:

The manufacturers have decided to use several applications of dubious origin which you can download here:

MANUFACTURERS SOFTWARE

Because Grbl is a standard GCode motion controller just about any CNC control software will work.

We recommend and use with this CNC open source software projects such as:
http://chilipeppr.com/
https://github.com/winder/Universal-G-Code-Sender
