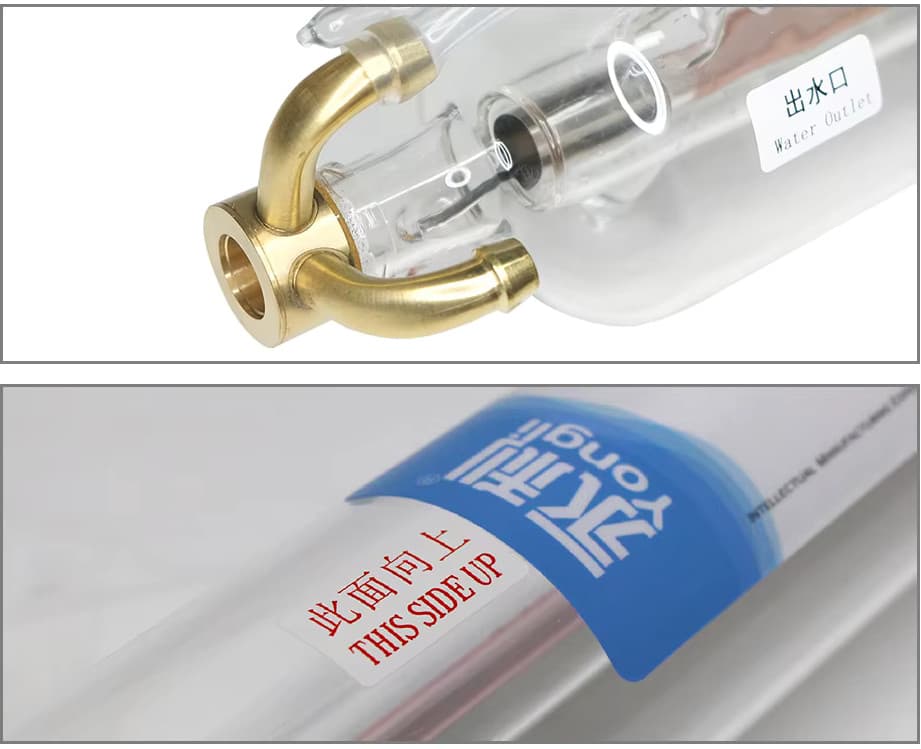

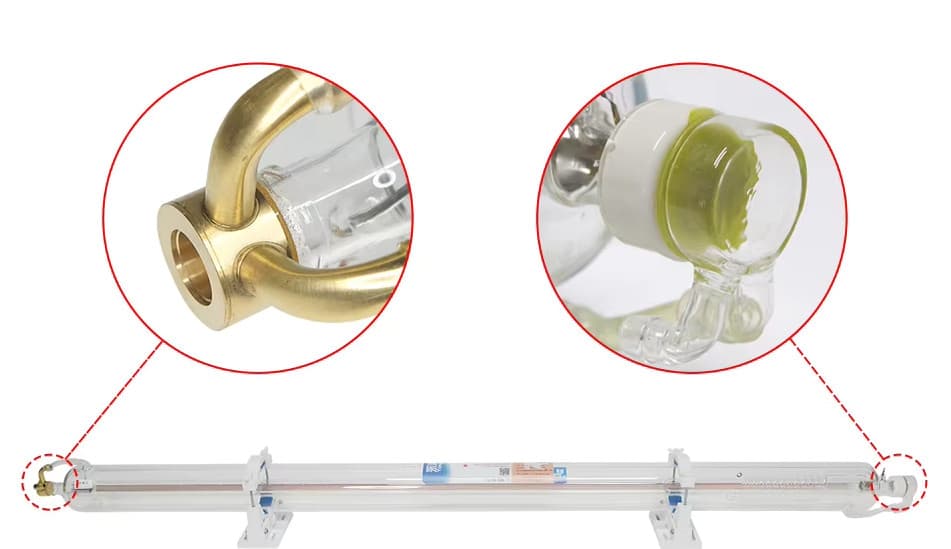

Introducing the 80W Yongli R3 Glass Laser Tube, an integral component designed for a wide range of applications, including laser cutting machines, laser engraving machines, laser marking machines, and more.

With a rated output power of 80W, the Yongli R3 Laser Tube showcases impressive capabilities, offering a maximum output power of 100W. Measuring at 1250mm in length and featuring a diameter of 80mm, this laser tube is engineered for versatility and efficiency.

Specifications

• Model: R3
• Rated power: 80W
• Max Power: 100W
• Max current: 26mA
• Ignition voltage: 23kV
• Working votage: 16kV
• Recommended working current: 21mA
• Diameter: 80mm
• Tube length: 1250mm

The surface of beam output lens cannot be scrubbed with any tools such as cotton balls, otherwise the
power will be serious affected. Here are several methods for cleaning.

• When the lens is contaminated, do not use the laser tube;
• Blow the lens surface obliquely with balloon;
• If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate
• the lens.
• No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas
• inside escaping.
• The laser cannot be used till alcohol evaporating.
• Do not scrub the lens with acetone. The best way to protect the lens is keeping the environment clean.
• When testing the beam on plexiglass, please keep it 300mm from the mirror.

Safety

Goggles are necessary when debugging because the laser belongs to invisible beam. Positive electrode carries high voltage. By the way, users must pay attention to the safety signs.

Storage and transportation requirements

• The cooling liquid must run out in storage or transportation;
• The output must be covered with a dust-proof plastic wrap;
• The storage temperature should be kept between 2-40°C and the humidity between 10-60%.
• Packing: original package. Be sure to stick the sponge and laser tube with tape to prevent the laser tube
• from sliding longitudinally during transportation. The output lens should have a protruding sponge of 70
• mm and the reflective lens 50 mm.

Include: Yongli's 80W laser tube(Does not include clamps)
