- IBoard Pro ATMega2560

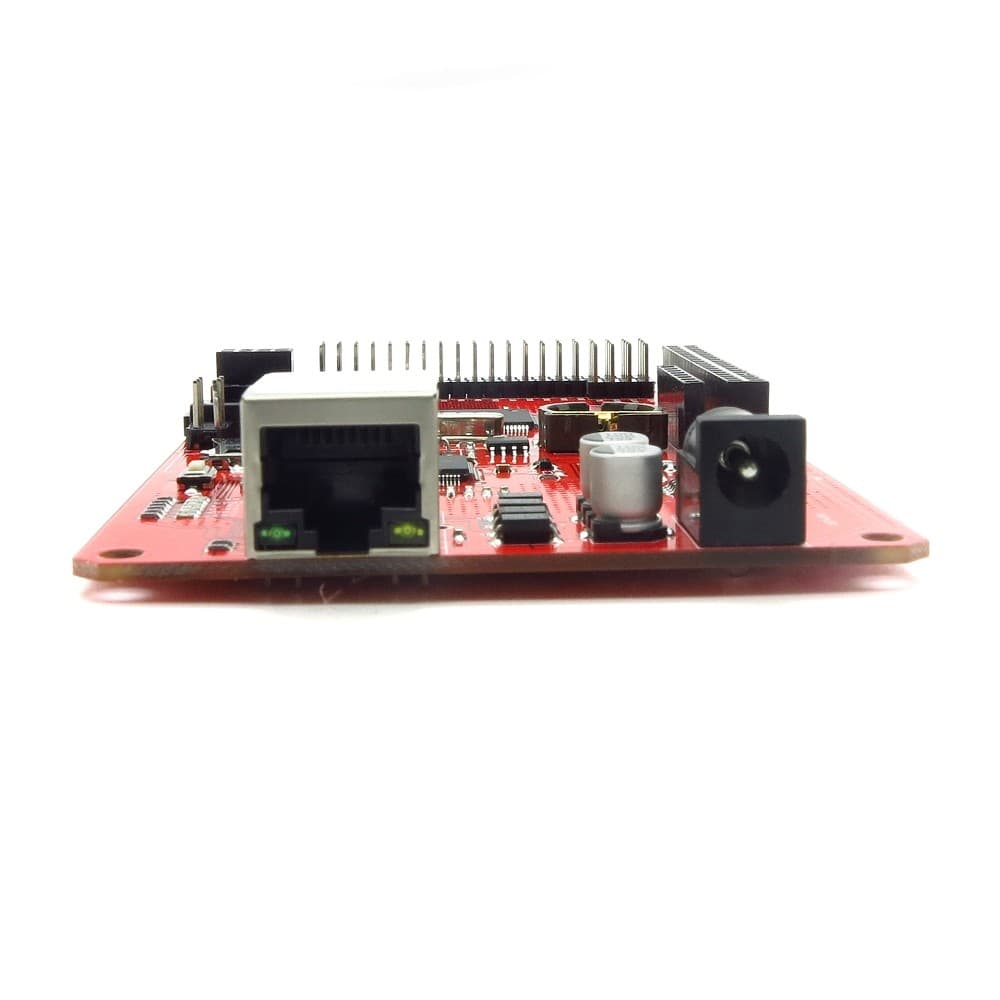

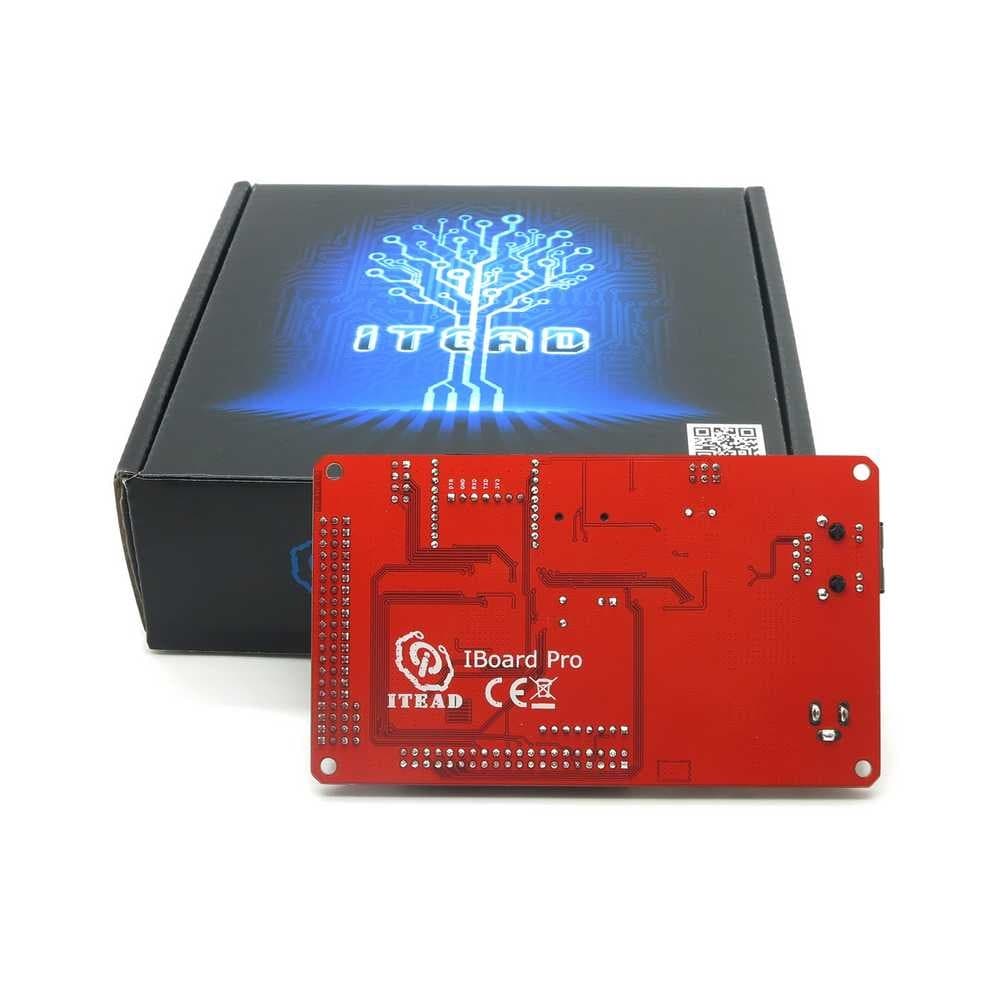

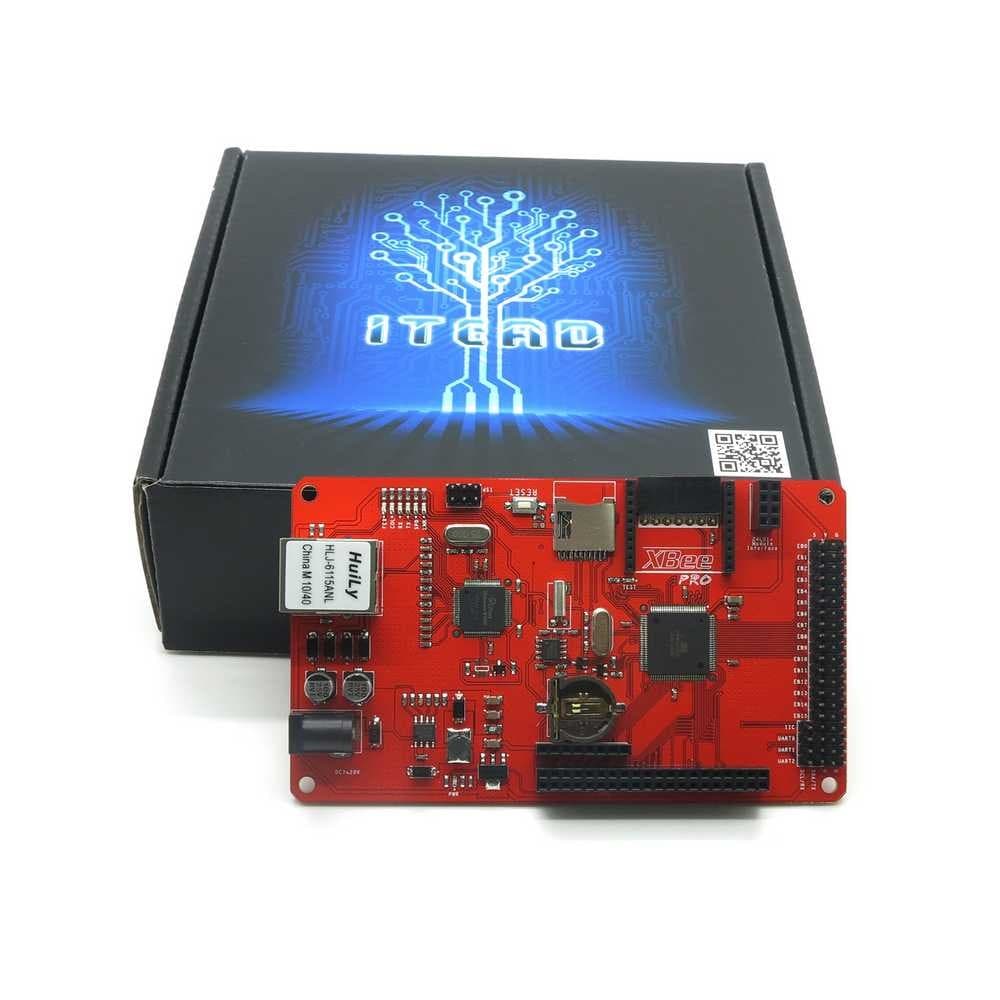

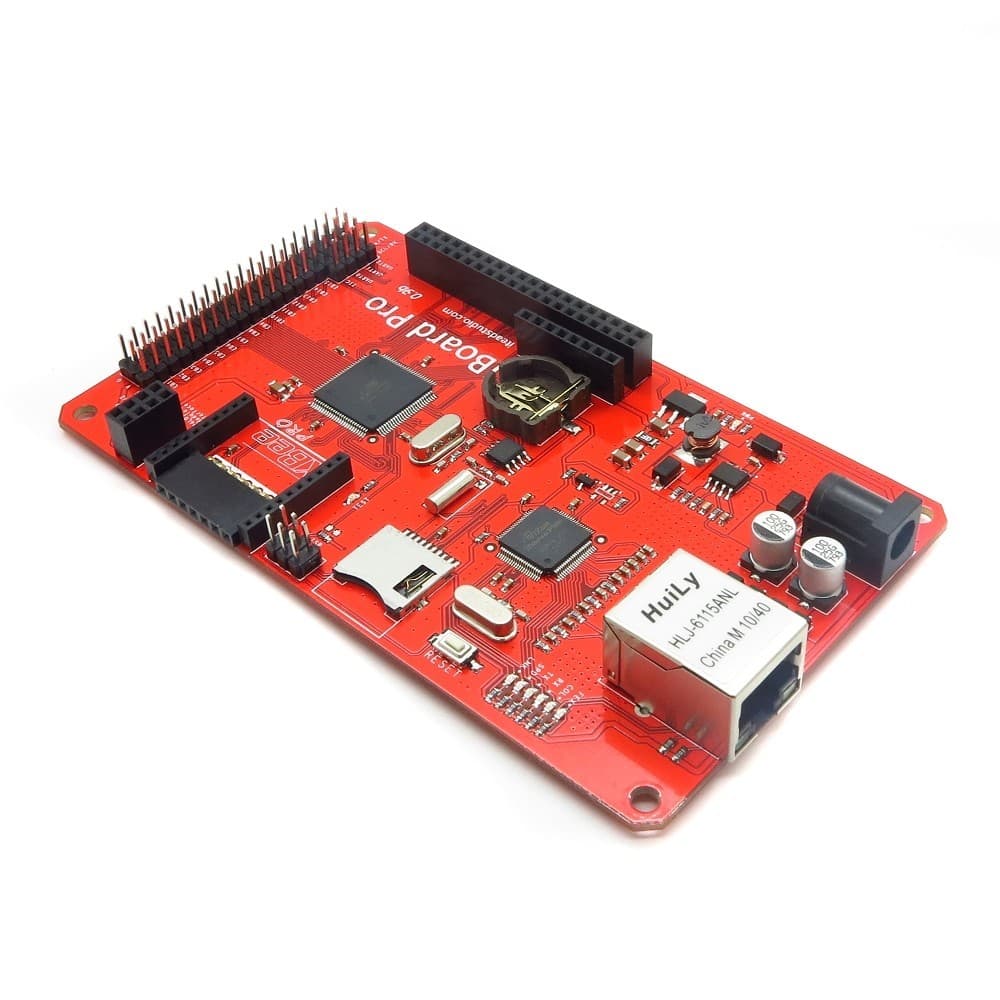

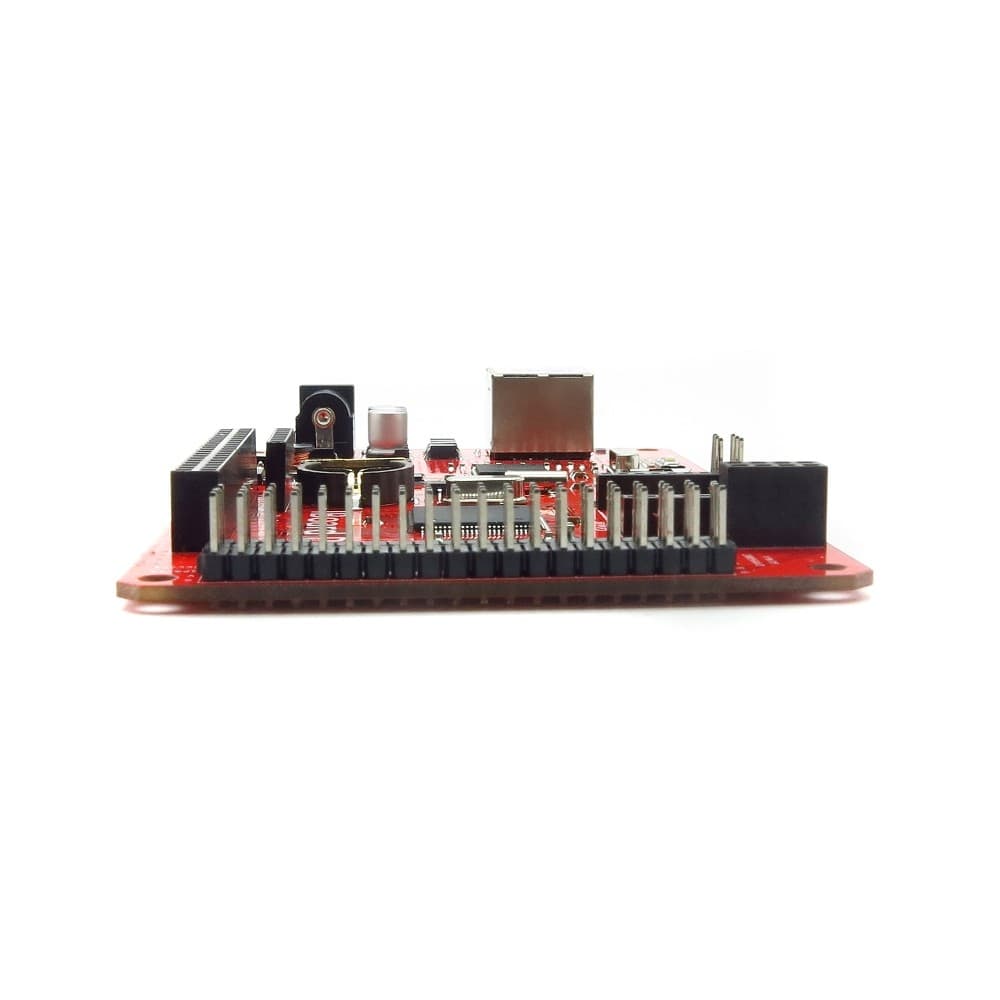

Product Description
The Iboard Pro is a unique Arduino board which features a WIZnet Ethernet port with POE, an XBee socket, ITDB02 Serial/Parallel LCD module interface, RTC, nRF24L01+ module interface, Micro SD socket and an ATMega2560. This board will add wireless.
Overview
The IBoard Pro is a unique Arduino board which features a WIZnet Ethernet port with POE, an XBee socket, ITDB02 Serial/Parallel LCD module interface, RTC, nRF24L01+ module interface, Micro SD socket and an ATMega2560. This board will add wireless XBee control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!
IBoard Pro can be used as an Ethernet, wireless communication project development platform. IBoard Pro support POE (power on Ethernet) power supply, and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, it offer an easy way for a quick prototyping. You can setup a web server through which you may communicate with a remote Arduino using XBee radios, bluetooth or APC modules. This information can be posted to a web site, or to Twitter.
The board requires FTDI basic board to upload sketch, you can use our Foca board to do it. Iboard can be powered by a mini USB , power Jack or POE.
Documents
IBoard Pro is a unique Arduino board which features a WIZnet Ethernet port with POE, an XBee socket, ITDB02 Serial/Parallel LCD module interface, RTC, nRF24L01+ module interface, Micro SD socket and an ATMega2560. This board will add wireless XBee control as well as internet connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless!
IBoard Pro can be used as an Ethernet, wireless communication project development platform.IBoard Pro support POE (power on Ethernet) power supply, and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, it offer an easy way for a quick prototyping. You can setup a web server through which you may communicate with a remote Arduino using XBee radios, bluetooth or APC modules. This information can be posted to a web site, or to Twitter.
The board requires FTDI basic board to upload sketch, you can use our Foca board to do it. Iboard can be powered by a mini USB, power Jack or POE.
Spec
| PCB size | 124.46mm X 72.39mm X 1.6mm |
| Power supply | 7-23V DC |
| Microprocessor | Atmega2560 |
| Indicators | PWR, Tx, Rx, COL, FDX, SPD, LINK,TEST |
| Communication Interface | Ethernet RJ45,XBee,nRF24L01+,UART,IIC |
| RoHS | Yes |
Electrical Characteristics
| Specification | Min. | Typical Value | Max. | Unit |
|---|---|---|---|---|
| Power Voltage | 7 | - | 23 | VDC |
| Input Voltage VH (Target Voltage = 3.3V) | 3 | 3.3 | 3.6 | V |
| Input Voltage VL: | -0.3 | 0 | 0.5 | V |
| Current Consumption | - | 100 | 500 | mA |
Hardware
Top View Map
Pin Map
ITDB02 Parallel LCD Module Interface
| Index of Interface | Name of Interface | Index of Arduino | Pin of Atmega2560 |
| 1 | GND | GND | GND |
| 2 | DB0 | D37 | PC0 |
| 3 | VCC | 5V | - |
| 4 | DB1 | D36 | PC1 |
| 5 | NC | - | - |
| 6 | DB2 | D35 | PC2 |
| 7 | LCD_RS | D38 | PD7 |
| 8 | DB3 | D34 | PC3 |
| 9 | LCD_WR | D39 | PG2 |
| 10 | DB4 | D33 | PC4 |
| 11 | LCD_RD | 3V3 | 3V3 |
| 12 | DB5 | D32 | PC5 |
| 13 | DB8 | D22 | PA0 |
| 14 | DB6 | D31 | PC6 |
| 15 | DB9 | D23 | PA1 |
| 16 | DB7 | D30 | PC7 |
| 17 | DB10 | D24 | PA2 |
| 18 | Touch_CLK | D6 | PH3 |
| 19 | DB11 | D25 | PA3 |
| 20 | Touch_CS | D5 | PE3 |
| 21 | DB12 | D26 | PA4 |
| 22 | Touch_DIN | D48 | PL1 |
| 23 | DB13 | D27 | PA5 |
| 24 | Touch_BUSY | - | - |
| 25 | DB14 | D28 | PA6 |
| 26 | Touch_DOUT | D3 | PE5 |
| 27 | DB15 | D29 | PA7 |
| 28 | Touch_IRQ | D2 | PE4 |
| 29 | LCD_CS | D40 | PG1 |
| 30 | SD_MISO | D50 | PB3 |
| 31 | NC | - | - |
| 32 | SD_SCK | D52 | PB1 |
| 33 | LCD_RST | D41 | PG0 |
| 34 | SD_MOSI | D51 | PB2 |
| 35 | NC | - | - |
| 36 | SD_CS | D53 | PB0 |
| 37 | LED+ | 3V3 | 3V3 |
| 38 | NC | - | - |
| 39 | LED- | GND | GND |
| 40 | NC | - | - |
ITDB02 Serial LCD Module Interface
| Index of Interface | Name of Interface | Index of Arduino | Pin of Atmega2560 |
| 1 | 5V | 5V | - |
| 2 | GND | GND | - |
| 3 | RESET | D37 | PC0 |
| 4 | RS | D36 | PC1 |
| 5 | SDA | D35 | PC2 |
| 6 | SCL | D34 | PC3 |
| 7 | CS | D33 | PD4 |
| 8 | NC | - | - |
ITDB02 EB Interface
| Index of Interface | Name of Interface | Index of Arduino | Pin of Atmega2560 |
| 1 | EB0 | A0 | PF0 |
| 2 | EB1 | A1 | PF1 |
| 3 | EB2 | A2 | PF2 |
| 4 | EB3 | A3 | PF3 |
| 5 | EB4 | A4 | PF4 |
| 6 | EB5 | A5 | PF5 |
| 7 | EB6 | A6 | PF6 |
| 8 | EB7 | A7 | PF7 |
| 9 | EB8 | A8 | PK0 |
| 10 | EB9 | A9 | PK1 |
| 11 | EB10 | A10 | PK2 |
| 12 | EB11 | A11 | PK3 |
| 13 | EB12 | A12 | PK4 |
| 14 | EB13 | A13 | PK5 |
| 15 | EB14 | A14 | PK6 |
| 16 | EB15 | A15 | PK7 |
nRF24L01+ Module Interface
| Index of Interface | Name of Interface | Index of Arduino | Pin of Atmega2560 |
| 1 | GND | - | - |
| 2 | 3V3 | - | - |
| 3 | CE | D12 | PB6 |
| 4 | CS | D11 | PB5 |
| 5 | SCK | D9 | PH6 |
| 6 | MOSI | D8 | PH5 |
| 7 | MISO | D7 | PH4 |
| 8 | IRQ | - | PE7 |
Micro SD Socket
| Index of Interface | Name of Interface | Index of Arduino | Pin of Atmega2560 |
| 2 | SD_CS | D4 | PG5 |
| 3 | SD_MOSI | D51 | PB2 |
| 4 | 3V3 | - | - |
| 5 | SD_SCK | D52 | PB1 |
| 6 | GND | - | - |
| 7 | SD_MISO | D50 | PB3 |
W5100 Communication Interface
| Index of Interface | Name of Interface | Index of Arduino | Pin of Atmega2560 |
| 1 | W5100_CS | D10 | PB4 |
| 2 | SD_MOSI | D51 | PB2 |
| 3 | SD_SCK | D52 | PB1 |
| 4 | SD_MISO | D50 | PB3 |
| 5 | W5100_RESET | D47 | PL2 |
