DS215MG HV micro servo is an amazingly powerful and fast metal-cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 4.0 kgf.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and leading speed.

Weighing only 20g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is designed for use with a 2S LiFe or 2S LiPo battery. Do not use on a 5V supply. It is the high voltage replacement of the acclaimed KST DS115MG servo.

Specification:

• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 3.1Kgf.cm@6.0V, 3.7Kgf.cm@7.4V, 4.0Kgf.cm@8.4V
• Speed: 0.060sec/60°@6.0V, 0.055sec/60°@7.4V, 0.050sec/60°@8.4V
• Working Frequency: 1520us/333Hz,800us-2200us
• Default Travel Angle: ±70° = 140° Total
• Temperature Range: -10℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB

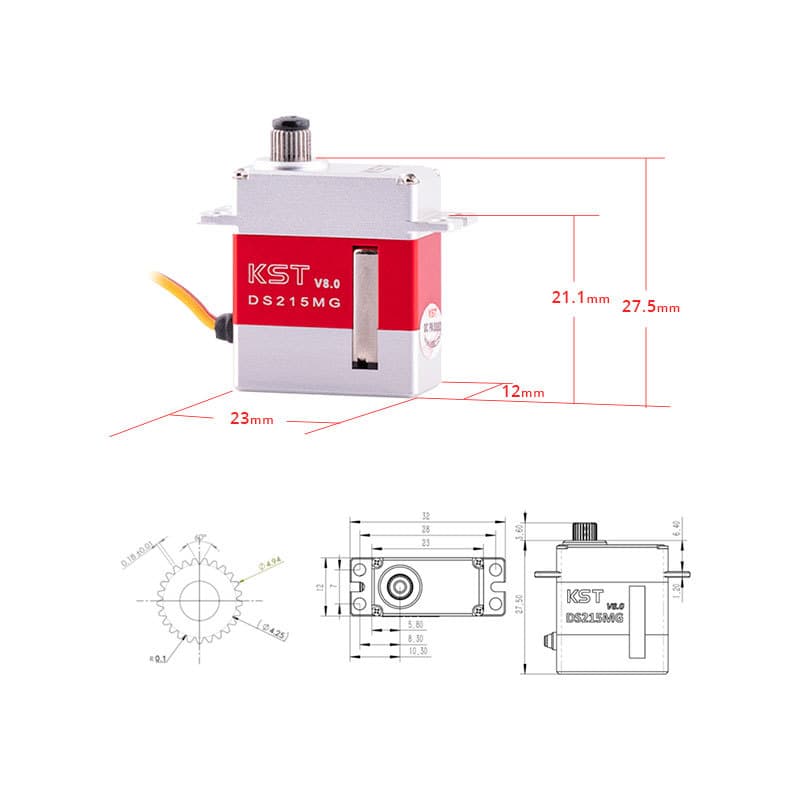

• Case Dimensions: 23mm*12mm*27.5mm±0.2mm
• Weight: 20g±10%

Documents

• Datasheet
