Digital Clamp Meter with Auto-Range

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$99.95
SKU:
TOL-CB3499
Current Stock:
1
Quantity:


Product Description

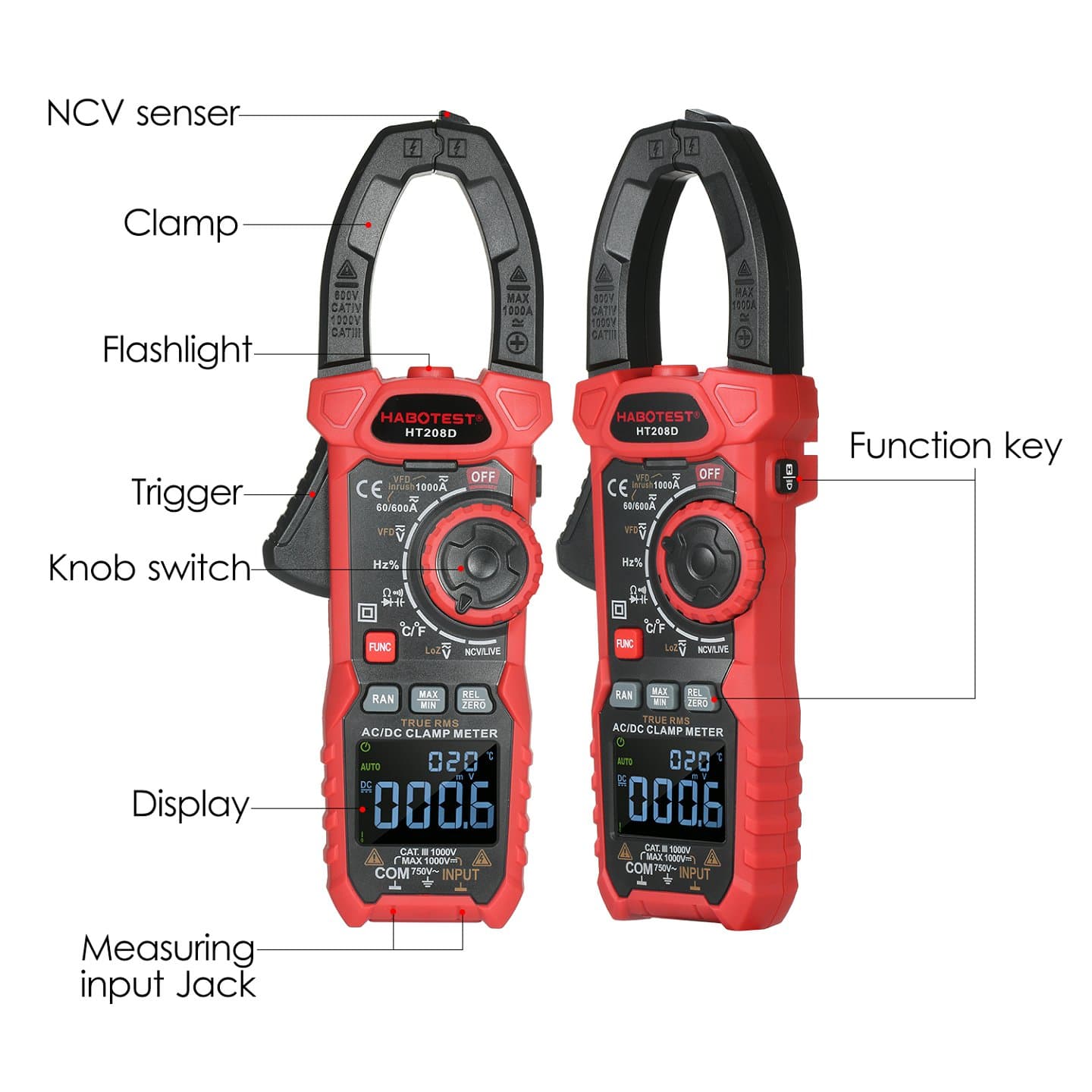

A Dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage, AC/DC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.

Specifications

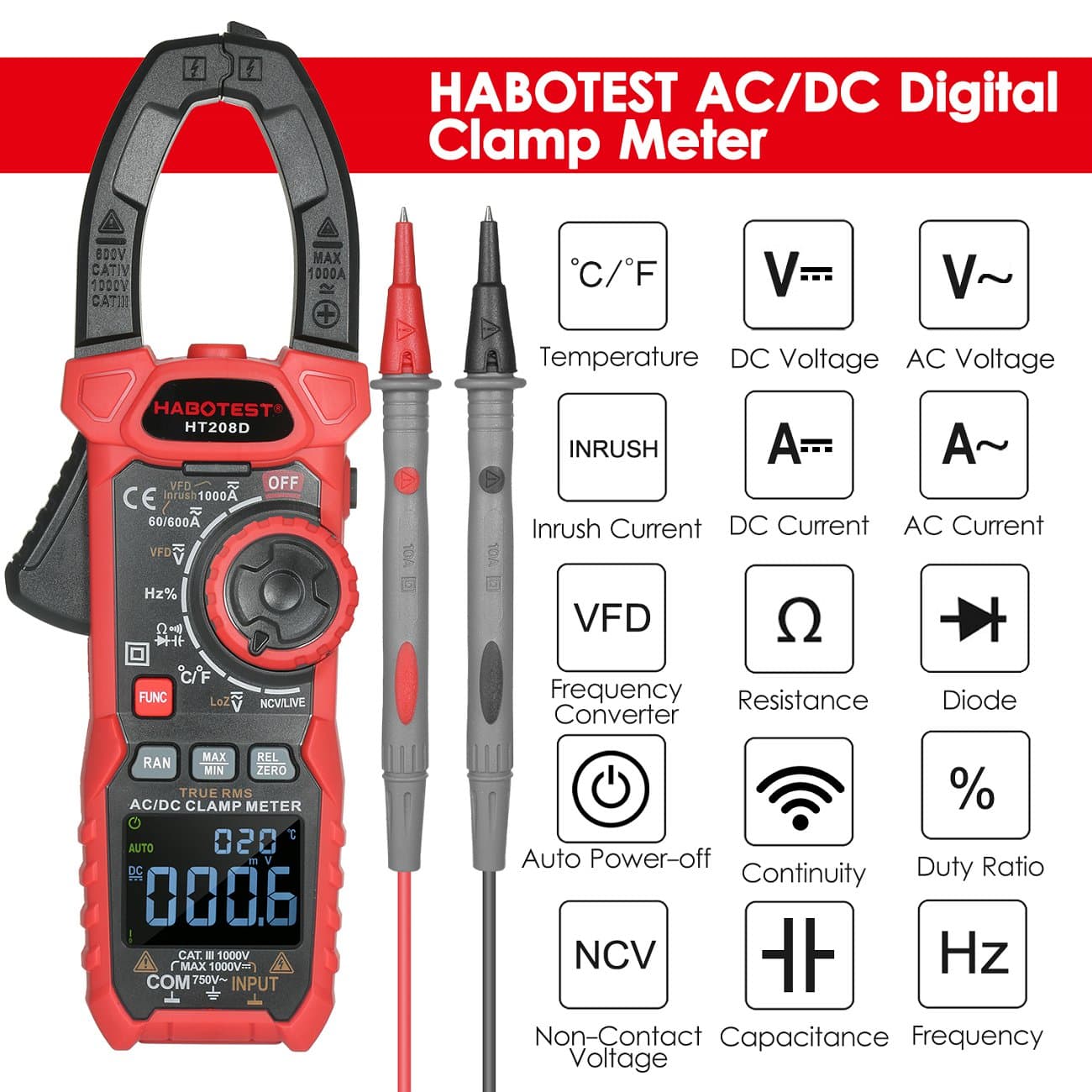

  • Clamp multimeter: Measures inrush current, VFD current/voltage, AC/DC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
  • WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
  • LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
  • MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
  • SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
  • AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
  • MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
  • Material: ABS
  • Color: Black and Red
  • Battery: 2pcs, 1.5V, AAA alkaline battery (batteries not included)
  • Item Size: 24*8*4.5cm / 9.44*3.14*1.77in
  • Item Weight: 311g / 10.97oz
  • Package Size: 27.5*13.5*5.5cm / 10.82*5.31*2.16in
  • Package Weight: 620g / 21.86oz

Note:

  • MUST read the user manual carefully before use for safety.
  • Battery not included.

Parameters:

  • Display: 6000 count
  • Clamp Opening Size: 40mm
  • Auto-off: approx. 15 minutes
  • Max. Voltage Between Terminals and Earth Ground: AC750V or DC 1000V

Range

Resolution

Accuracy

DC Current (MAX current: 1000A)

60A

0.01A

±(2.5%reading+8)

600A

0.1A

1000A

1A

AC Current (MAX current: 1000A, True RMS)
Frequency range: 0.1~600A: 40Hz~400Hz
600~1000A: 40Hz~60Hz

60A

0.01A

±(2.5%reading+8)
VFD: ±(5.0%reading+10)
INRUSH: ±(5.0%reading+10)

600A

0.1A

1000A

1A

DC Voltage
Input impedance: 10MΩ(LoZ: 300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V

600mV

0.1mV

±(0.5%reading+5)

6V

0.001V

60V

0.01V

600V

0.1V

1000V

1V

±(0.8%reading+5)

AC Voltage
Input impedance: 10MΩ(LoZ: 300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V
Frequency range: 40Hz~1kHz, True RMS

600mV

0.1mV

±(0.8%reading+5)

6V

0.001V

60V

0.01V

600V

0.1V

750V

1V

±(1.0%reading+5)

VFD(750V)

0.1V

±(2.0%reading+5)

Resistance
Overload protection: 250V

600Ω

0.1Ω

±(1.0%reading+5)

6kΩ

0.001kΩ

60kΩ

0.01kΩ

600kΩ

0.1kΩ

6MΩ

0.001MΩ

60MΩ

0.01MΩ

Diode

It displays the approximate forward voltage value of the diode.

Forward DC current is about 1.5mA;
Reverse DC voltage is about 3V;
Overload protection: 250V

Continuity

<approx. 30Ω, the buzzer sounds and the LED light on

Test Voltage Approx. 1V
Overload protection: 250V

Capacitance
Overload protection: 250V

10nF

0.001nF

±(4.0%reading+5)

100nF

0.01nF

1000nF

0.1nF

10μF

0.001μF

100μF

0.01μF

1000μF

0.1μF

10mF

0.001mF

100mF

0.01mF

±(5.0%reading+10)

Frequency/Duty Ratio
Overload protection: 250V

10Hz

0.001Hz

±(1.0%reading+3)

100Hz

0.01Hz

1000Hz

0.1Hz

10kHz

0.001kHz

100kHz

0.01kHz

1000kHz

0.1kHz

10MHz

0.001MHz

±(3.0%reading+3)

1~99%

0.1%

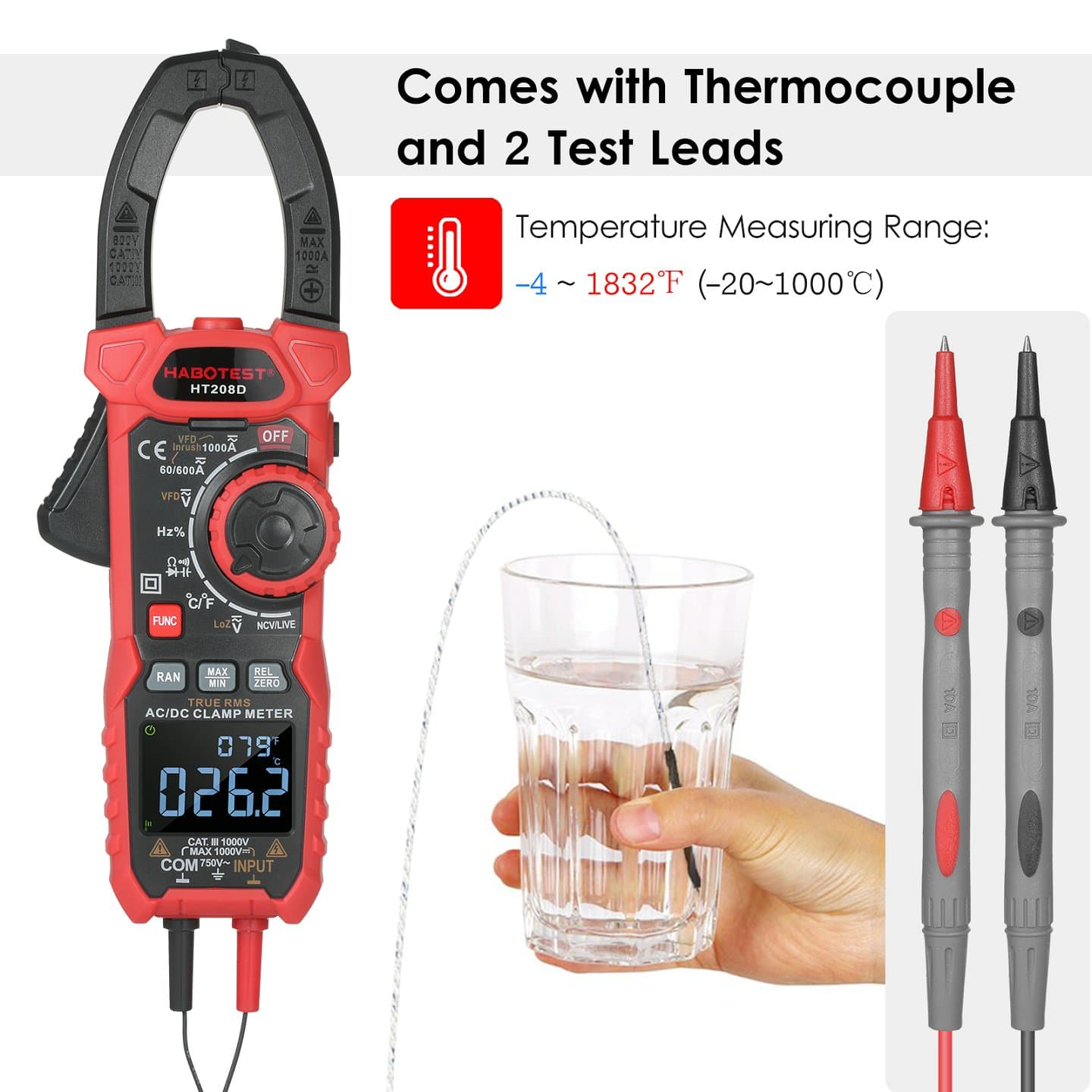

Temperature
*The below precision does not inlcude the error of thermocouple probe.

1℃

±3℃ (-20℃~0℃)

±1.0% or ±2℃ (0℃~400℃)

±2.0% (400℃~1000℃)

1℉

±6℉ (-4℉~32℉)

±1.0% or 4℉ (32℉~752℉)

±2.0% (752℉~1832℉)

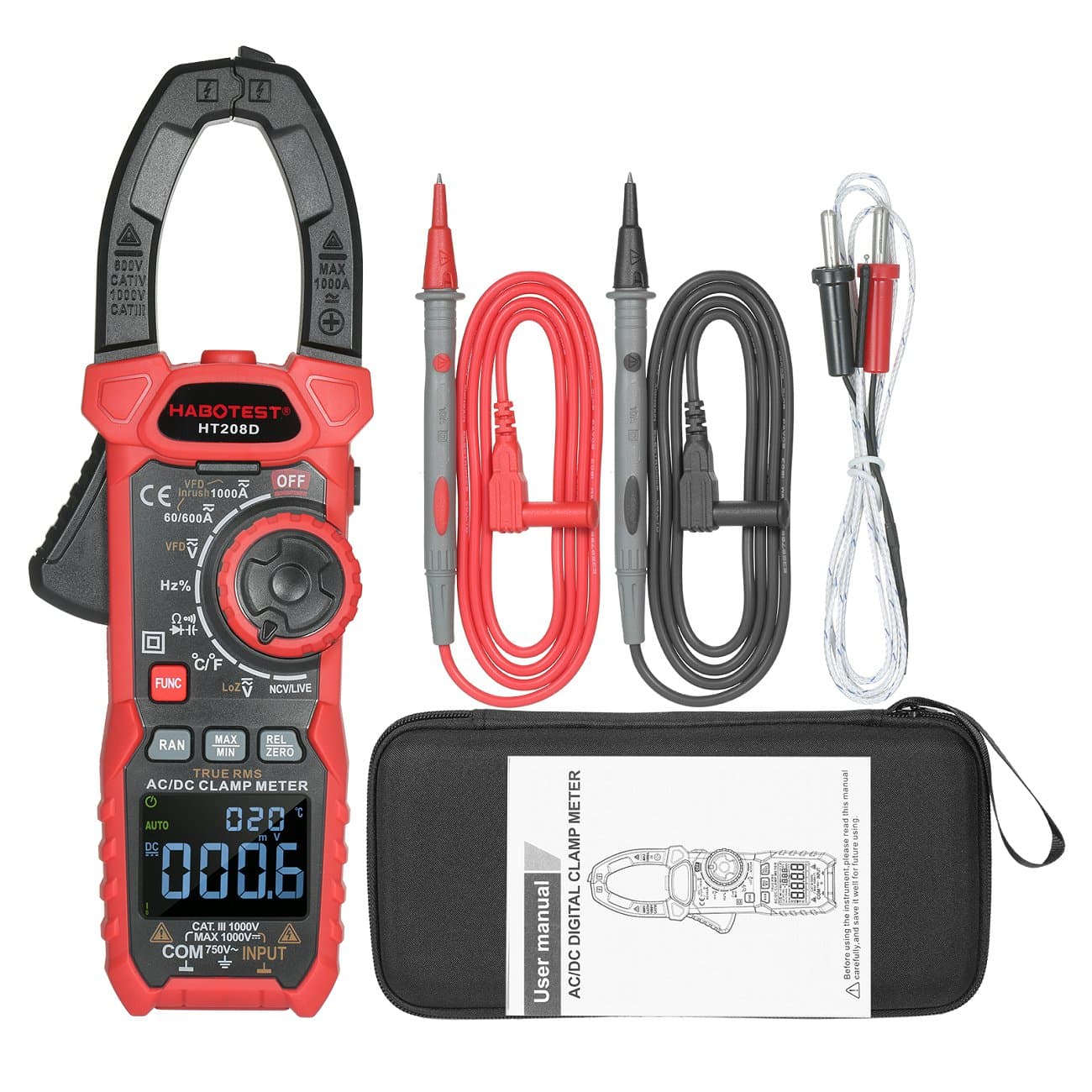

Packing List:

  • 1 Digital Clamp Meter
  • 1 Thermocouple
  • 2 Test Lead
  • 1 User Manual(English)
