This set includes 10 different tips, compatible with the soldering iron of our variable temperature soldering station and Solder & SMD Rework Station, they also fit fine to Hakko, Atten, and some Aoyue T Series (Not all of them, please check).

Features

• Internal heat design, these solder tips heat up quickly, and the preheating time is shorter than the external heating type.
• Lead-Free Environmental protection.
• Anti-Oxidation.
• Durable.

Specifications

• Material: Copper alloy, the surface is nickel-plated
• Outside diameter: 6.5 mm
• Internal diameter: 4.2 mm
• Length: 4.3 cm
• Temperature range: Approx.350 ℃

 Package includes

• 1X Soldering Iron Tip 900M-T-K
• 1X Soldering Iron Tip 900M-T-B
• 1X Soldering Iron Tip 900M-T-I
• 1X Soldering Iron Tip 900M-T-1C
• 1X Soldering Iron Tip 900M-T-2C
• 1X Soldering Iron Tip 900M-T-3C
• 1X Soldering Iron Tip 900M-T-4C
• 1X Soldering Iron Tip 900M-T-1.2D
• 1X Soldering Iron Tip 900M-T-1.6D
• 1X Soldering Iron Tip 900M-T-2.4D

Shapes nomenclature

• K shape: is a multipurpose iron head suitable for soldering SOJ, PLCC, SOP, QFP, power supply, grounding components, connectors, etc
• B shape: The iron head is not directional and has a long shape. It can work flexibly in a space with narrow space
• I shape: The tip of tin is small, suitable for fine welding, in a small space
• C shape: Suitable for welding with multiple volumes of tin, tin can only be tinned on the slope, suitable for large areas of welding, thick terminals, large welding environments
• D shape: Suitable for soldering with multiple volumes of tin, tin can only be tinned on the slope, suitable for large welding areas, thick terminals, large welding environments

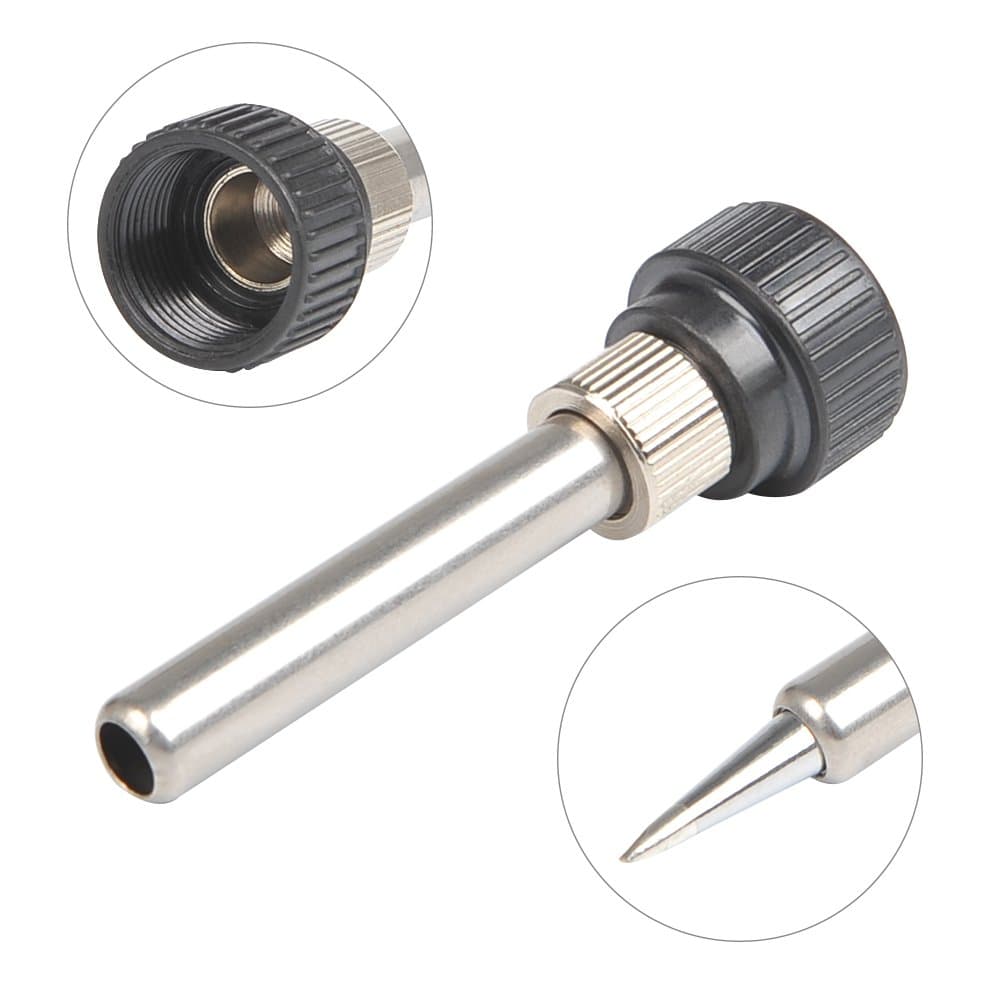

The following image is just for reference, the tips included in the product are listed above:
