4WD Smart Robot Car Chassis Kits with Speed Encoder

  • Image 1
  • Image 2
Price:
$15.95
SKU:
ROB-CB0016
Current Stock:
2
Quantity:


Product Description

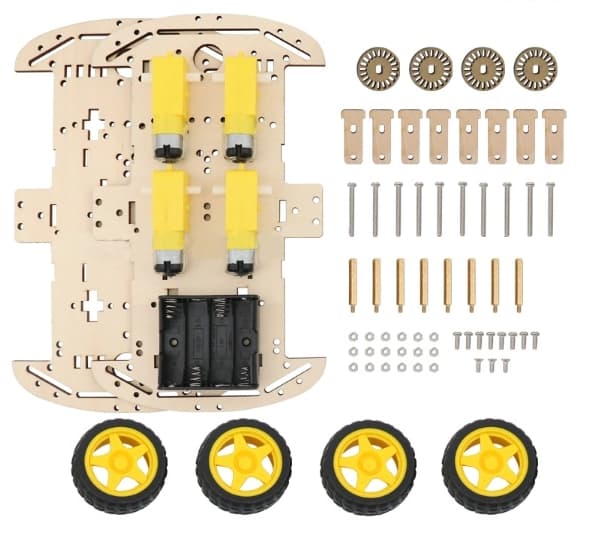

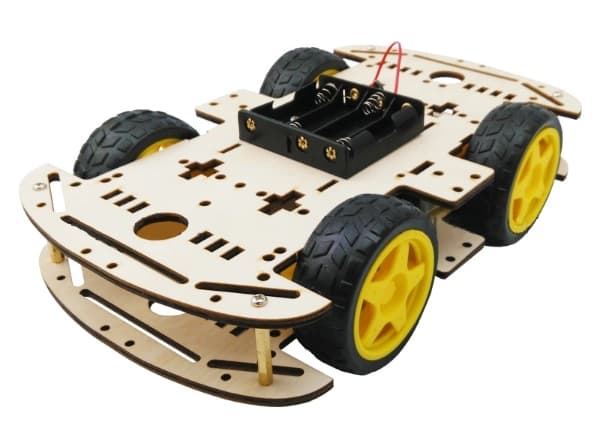

This is the perfect chassis kit to get started in robots. The chassis features four gearmotors with four 65mm wheels. The chassis plates are cut from plywood with a wide variety of mounting holes for sensors, controllers, power, etc. Simply bolt the two pre-cut platforms together, attach the motors and wheels and add 4 motor drivers and controller. This kit includes all of the parts needed to assemble the chassis as well as a 4xAA battery holder.

Please note that 4 gear motors require 4 motor drivers (H-bridges).  For a simpler first robot many prefer the Basic Chassis with gear motors and wheels.

Note: The chassis requires assembly.  Wires and connectors must to soldered to the motors (wires and connectors not included).  The battery holder requires that a connector be soldered to the wires (connector not included).

Features:

  • 4 x gearmotors
    • Optimum Motor Voltage: 4.5V
    • Maximum Motor Voltage: 6.0V
    • No Load Speed: 90rpm
    • No Load Current: 190mA (max. 250mA)
    • Stall Current: 1A
    • Torque: 800gf.m
  • 4 x 65mm wheels (30mm wide) plastic rims with rubber tires
  • 2 x chassis plates (red) with a variety of mounting holes
  • 1 x battery holder (holds 4xAA batteries)
